TYPICAL APPLICATIONS
- Industrial reagent and additive injection
- Process chemical feed
- Pressure-sensitive dosing systems
- Packaged injection and treatment equipment
Request a quote →
← Metering Pumps
ZR SERIES

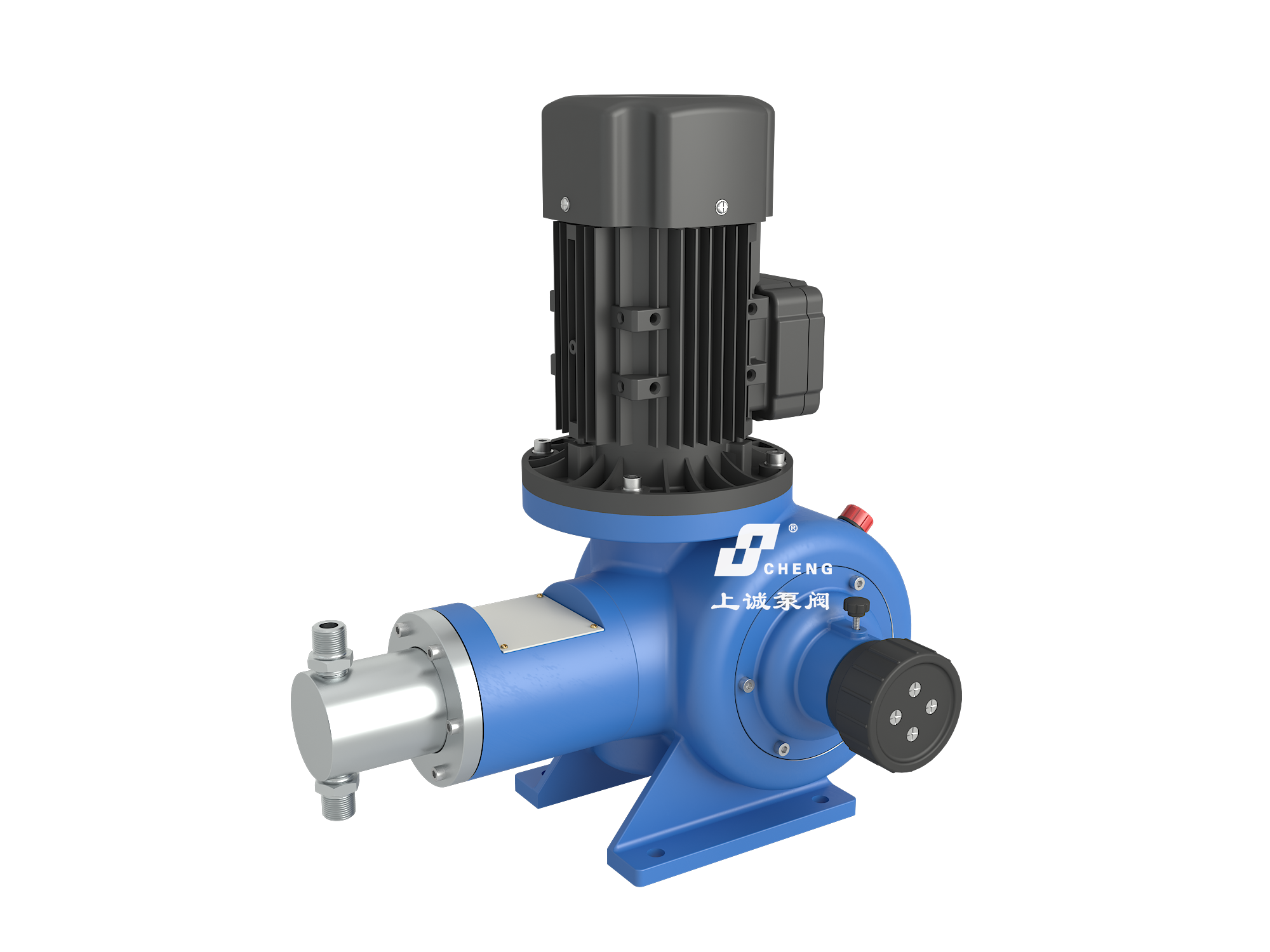

ZR Plunger Metering Pump
Plunger metering construction for controlled dosing and pressure-sensitive process duties.
Inquire about this model →MODEL / ZR
SELECTION OVERVIEW
Plunger selection begins with pressure and sealing conditions.
The ZR series uses a plunger-style liquid end for controlled delivery in duties where discharge pressure is an important part of selection. The liquid, concentration, temperature, lubrication characteristics, required capacity, pressure and sealing compatibility must all be reviewed before a configuration is confirmed.
PRODUCT VIEWS
ZR series configuration.
VIEW 01
VIEW 02
VIEW 03
VIEW 04
VIEW 05
VIEW 06INFORMATION REQUIRED
- Liquid name, concentration and operating temperature
- Required minimum, normal and maximum delivery rate
- Normal and maximum discharge pressure
- Viscosity, specific gravity and suction arrangement
- Site voltage, frequency and control requirements
OPERATING NOTES
- Confirm normal and maximum discharge pressure, including transient conditions.
- Review plunger and sealing compatibility with the exact liquid.
- Protect the discharge line against closed-valve operation and pressure spikes.
- Plan inspection and replacement access for packing and liquid-end components.
KEY DESIGN POINTS
Four details to confirm for the ZR series.
Plunger liquid-end arrangement
The plunger construction is suited to controlled delivery where pressure capability is central to the application review.
Stable mechanical adjustment
The drive and adjustment mechanism supports repeatable delivery after the operating range is correctly selected.
Material and sealing review
Plunger, packing, valves and liquid-end materials are considered together against the full chemical duty.
Industrial installation options
Motor, connection and accessory details can be coordinated with the injection point and plant standard.
BEFORE ORDERING
Confirm the dosing system, not only the pump model.
- Liquid: provide the complete chemical name, concentration, temperature and any cleaning fluid.
- Capacity: state the minimum, normal and maximum required delivery rate and adjustment method.
- Pressure: state normal and maximum discharge pressure, injection-point conditions and possible transients.
- Suction: describe tank level, suction lift, pipe size, length, valves and priming conditions.
- Accessories: identify requirements for relief, back-pressure, pulsation control, calibration or automatic control.
TECHNICAL DOCUMENT
Metering pump series catalog.
Review the complete metering-pump range, model data, performance tables, dimensions, accessories, dosing systems and project selection information.
View or download PDF →Official Shangcheng watermarked document · PDF · 20 pagesMODEL INQUIRY
Let us verify the dosing duty.
For a ZR quotation, provide the chemical and concentration, temperature, viscosity, specific gravity, minimum/normal/maximum dosing capacity, normal/maximum discharge pressure, suction arrangement and piping sketch. Include power supply, control requirements, connection standard, purchase quantity and destination. Identify which pump, motor, valves, accessories and documentation are requested so quotations can be compared on the same scope.
Ask for confirmation of the proposed plunger and packing materials, the applicable inspection or adjustment procedure, replacement-part identification and maintenance access. State the site requirements for any leakage handling or containment; do not assume a collection arrangement is included or accept an unspecified leakage allowance. No packing service life or maintenance interval is established by the model name.
Review the back-pressure and pressure-relief accessory guide with the line layout. Request a documented relief discharge destination and confirmation of any back-pressure requirement; these functions are not interchangeable. Valve settings and accessory supply scope require project-specific confirmation before purchase.
Send requirements →
