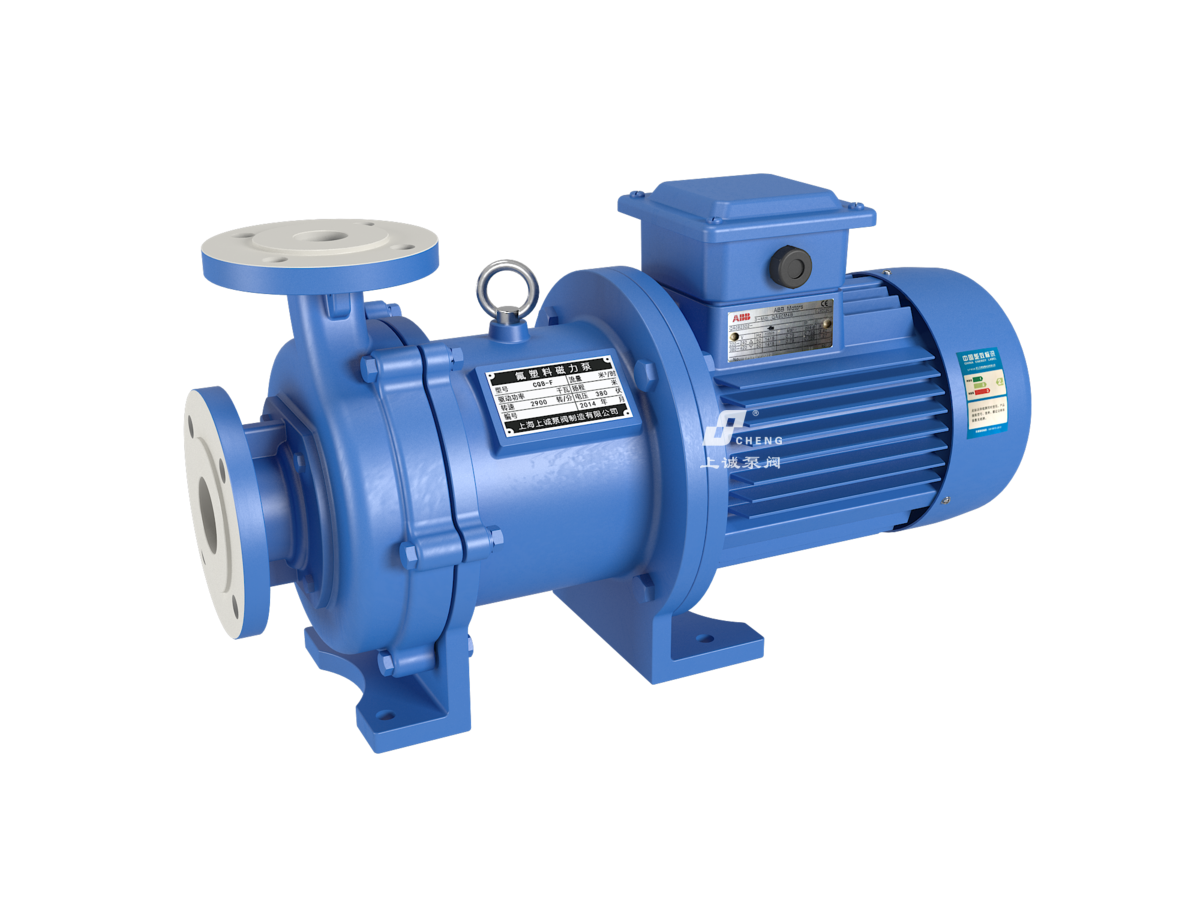

Fluoroplastic Magnetic Drive Pump
Fluoroplastic magnetic drive pump for compatible corrosive clean liquids. Confirm every wetted component against the chemical, concentration and temperature.
View model details ↗
Request a quote ↗← All pump products
MAGNETIC DRIVE PUMP SERIES
Magnetic Drive Pumps
Sealless transfer for corrosive and leakage-sensitive liquids.
Request selection support ↗PRODUCT / CQB-F Series
PRODUCT OVERVIEW
Designed around the operating conditions.
Shanghai Shangcheng Pump & Valve Manufacturing Co., Ltd. is a magnetic drive pump manufacturer supplying configurations for chemical transfer and compatible clean-liquid duties. Choose the chemical magnetic drive pump configuration from the medium, wetted materials, temperature and operating conditions, not the family name alone.
The range includes fluoroplastic, metallic and engineering-plastic constructions, along with heated, high-temperature, inline and self-priming arrangements. A sealless magnetic pump transmits torque without a conventional rotating shaft seal; this does not guarantee zero leakage under every operating condition.
For chemical conditions, material compatibility and duty review, read our chemical magnetic pump selection guide.
AVAILABLE PRODUCT TYPES
Model families within this range.
These are product configurations supplied in the series. Final material, motor and hydraulic selection depends on the operating conditions.

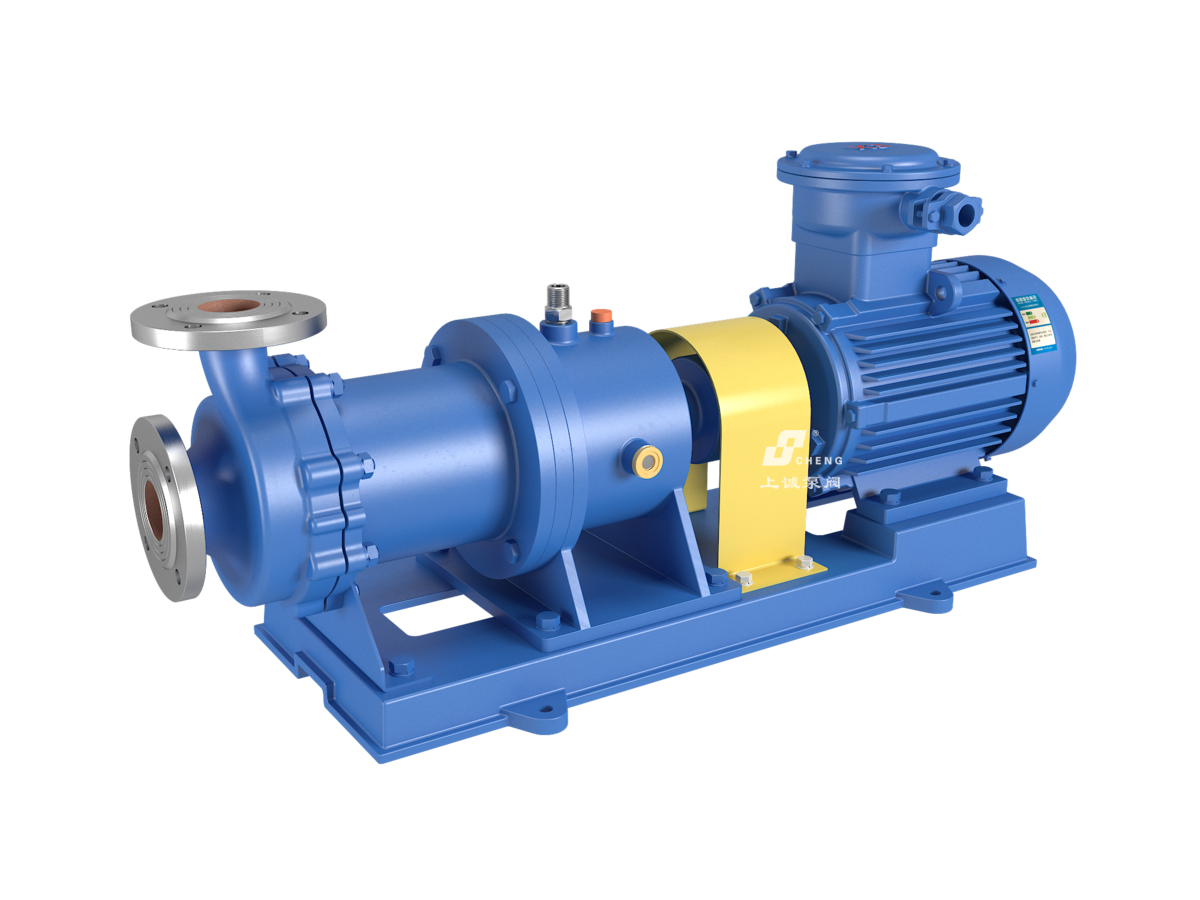

High-Temperature Heated Magnetic Pump
Heated, jacketed arrangement for reviewed heat-sensitive or easily solidified media. Confirm the liquid and temperature-control duty.
View model details ↗

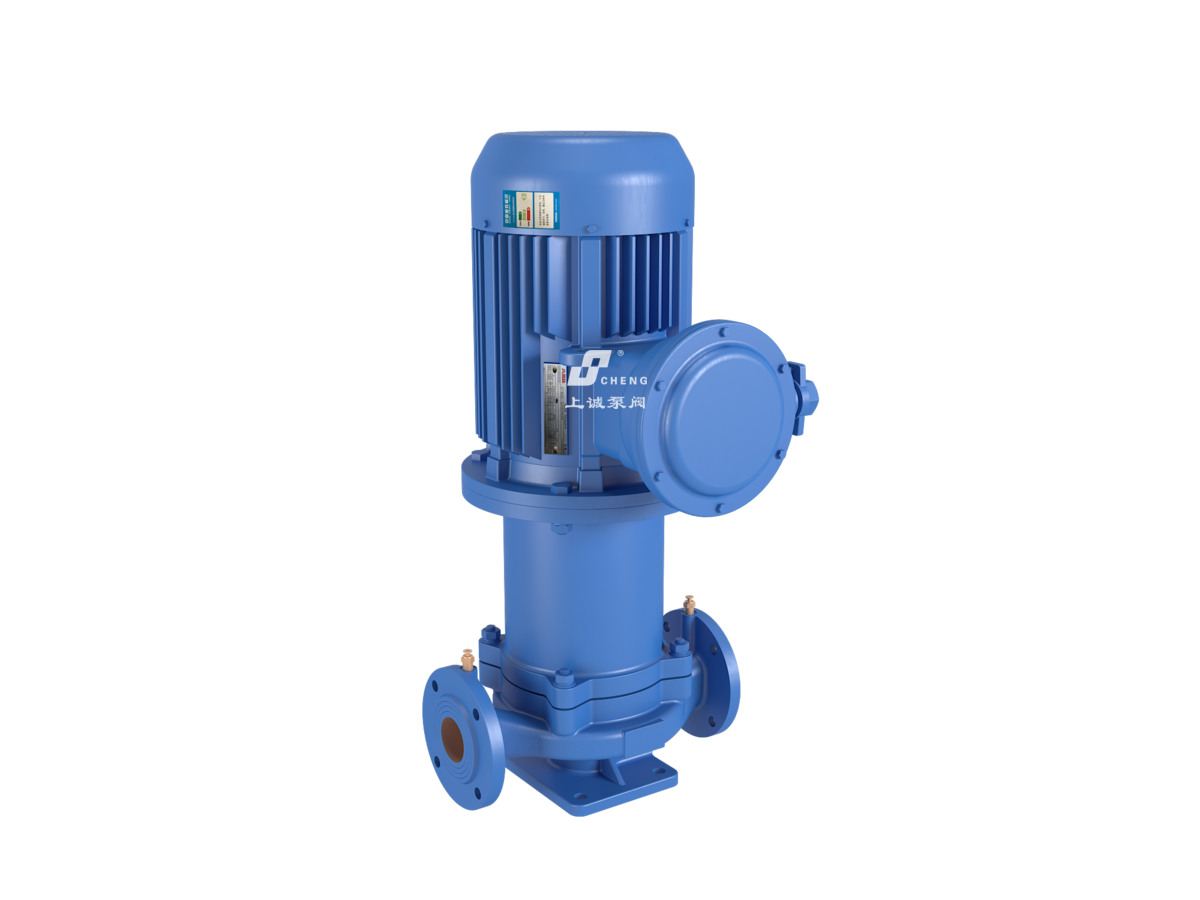

Inline Magnetic Centrifugal Pump
Inline magnetic centrifugal configuration for compact process piping. Confirm the piping layout, hydraulic duty and material compatibility.
View model details ↗

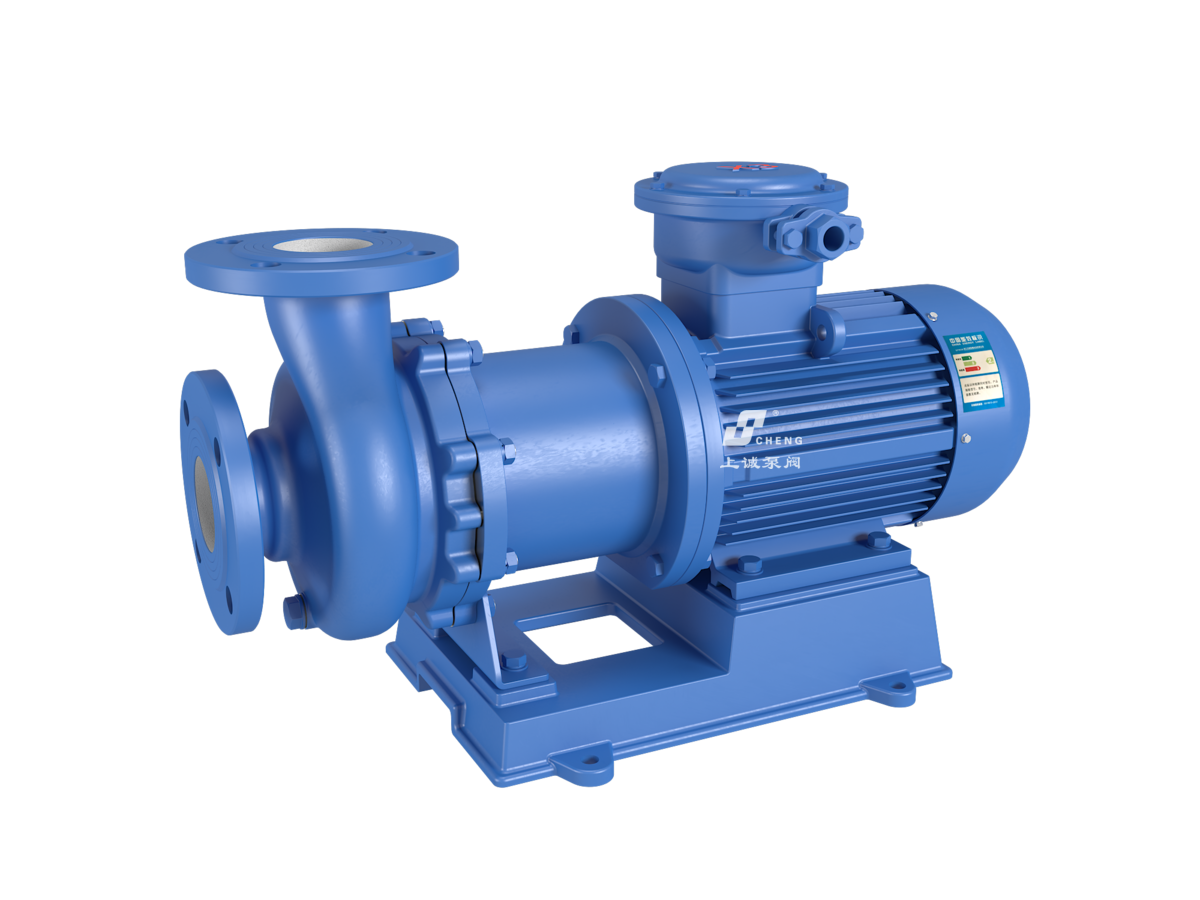

Heavy-Duty Magnetic Drive Pump
Metallic magnetic-drive construction for compatible clean-liquid transfer. Review temperature, pressure duty and wetted materials.
View model details ↗

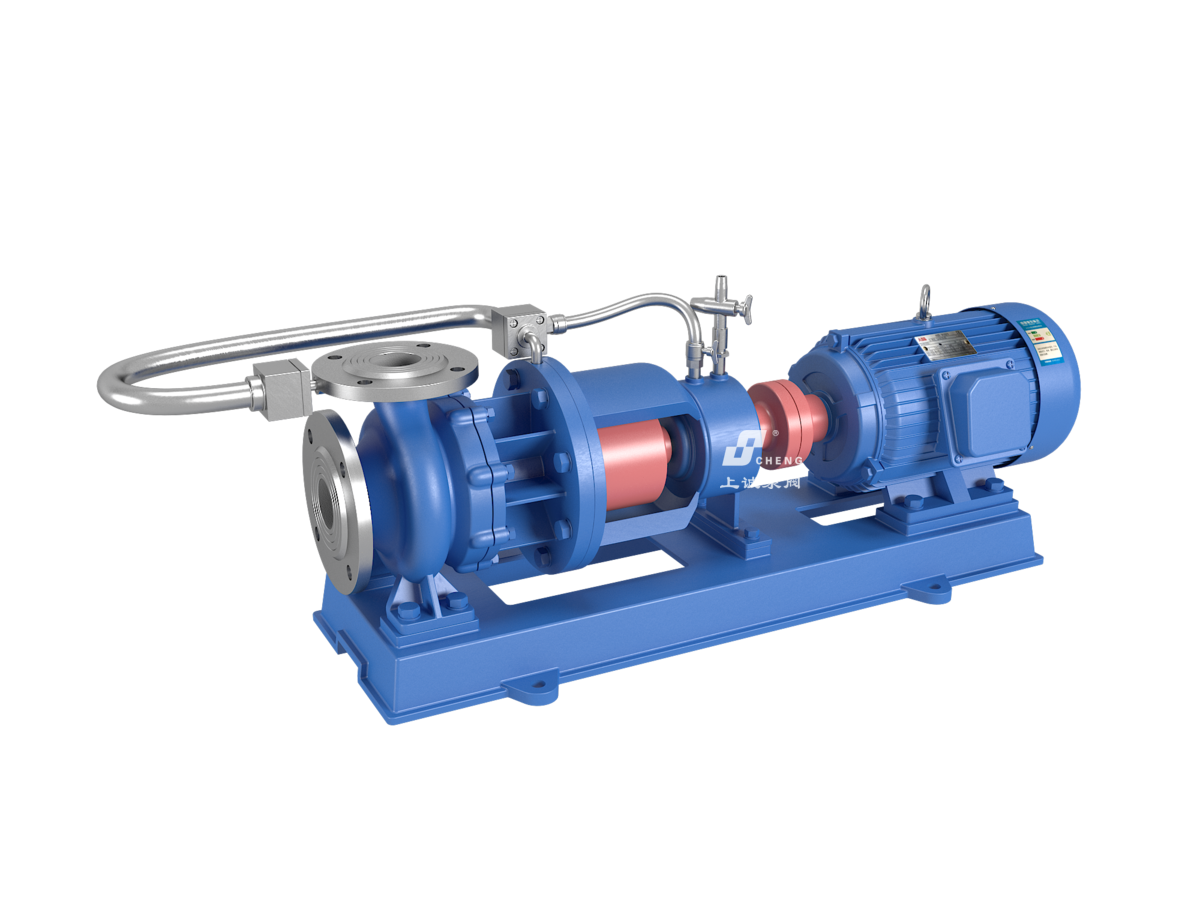

High-Temperature Magnetic Drive Pump
High-temperature magnetic-drive configuration. Confirm the specific liquid, operating temperature and selected materials; not a universal high-temperature solution.
View model details ↗

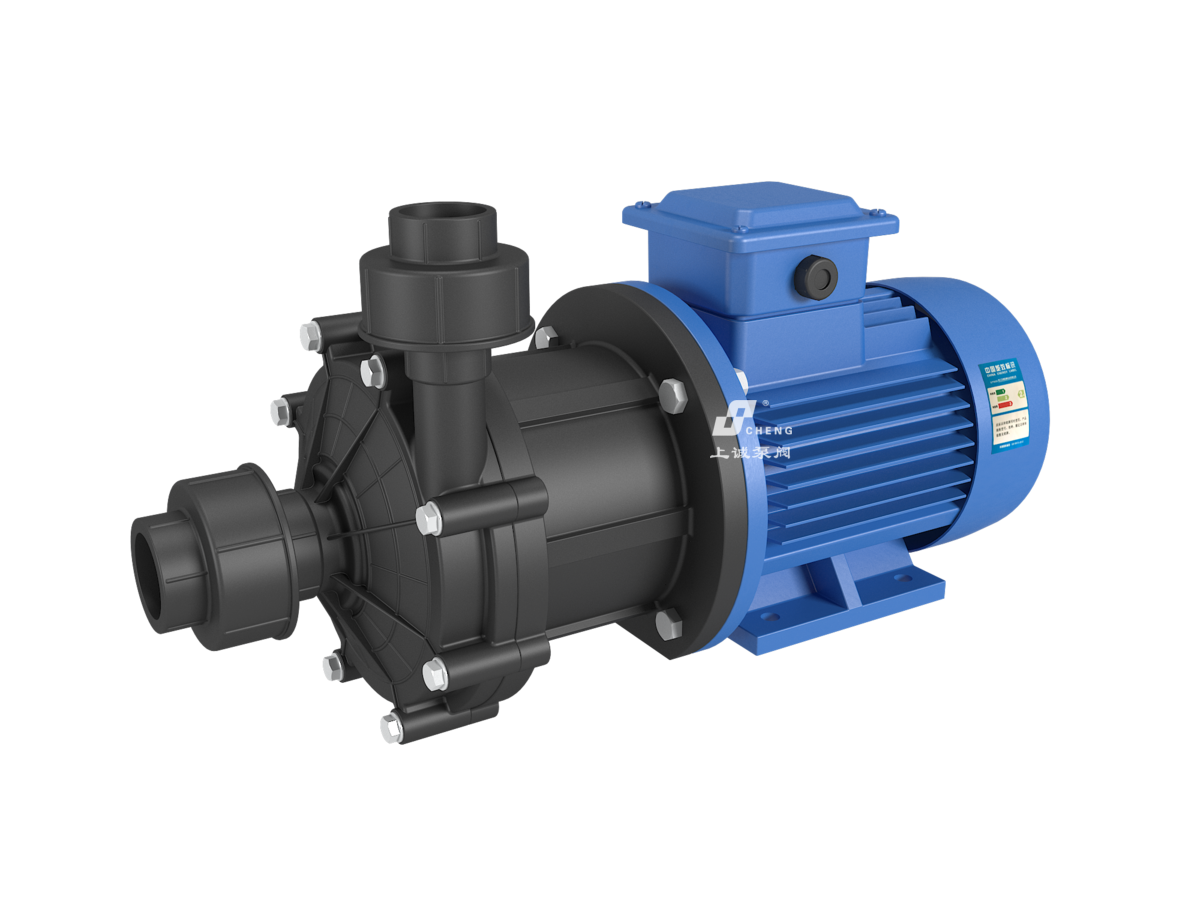

Engineering Plastic Magnetic Pump
Engineering-plastic magnetic pump for compatible chemical liquids. Select a corrosion resistant magnetic pump only after reviewing the actual chemical conditions.
View model details ↗

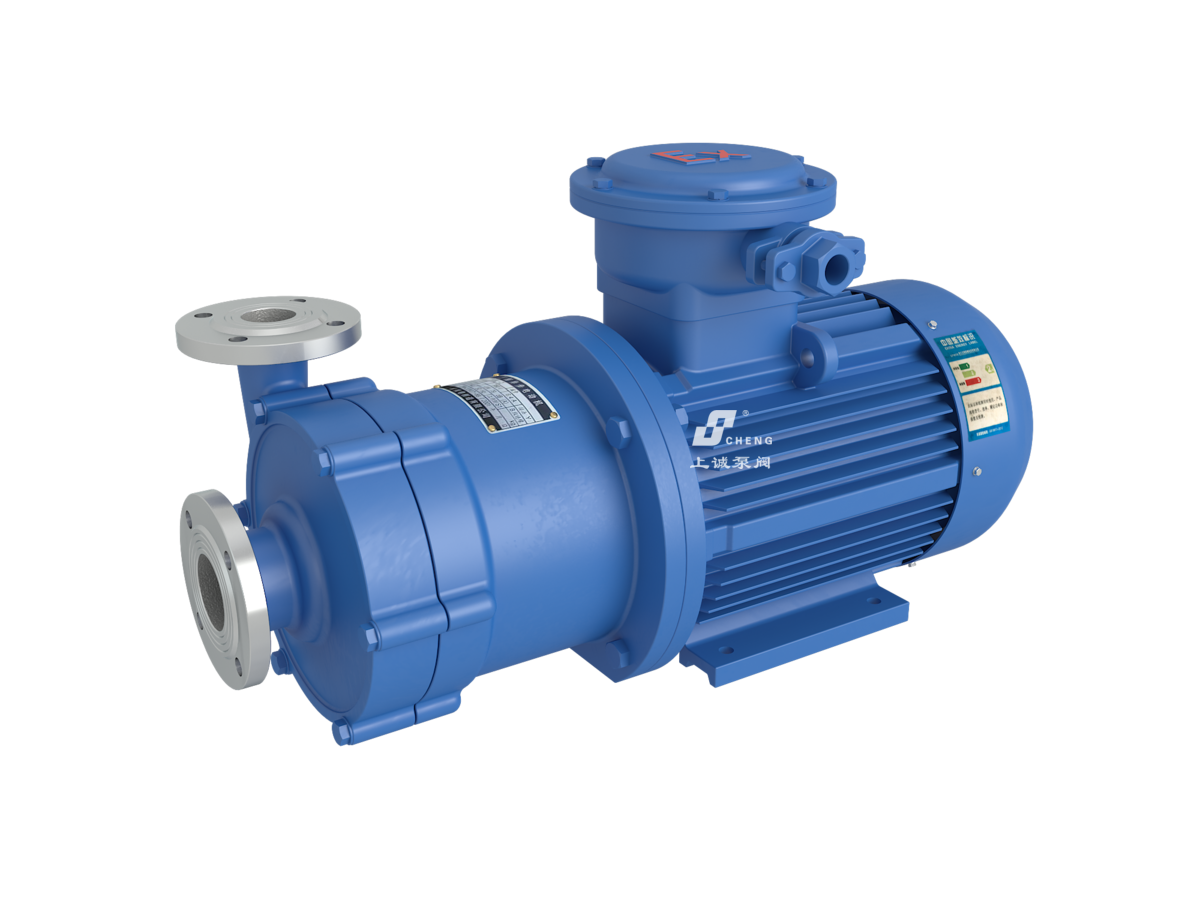

Standard Magnetic Drive Pump
Standard magnetic-drive configuration for clean compatible liquids. Review flow, head, materials and inlet conditions; do not assume self-priming capability.
View model details ↗

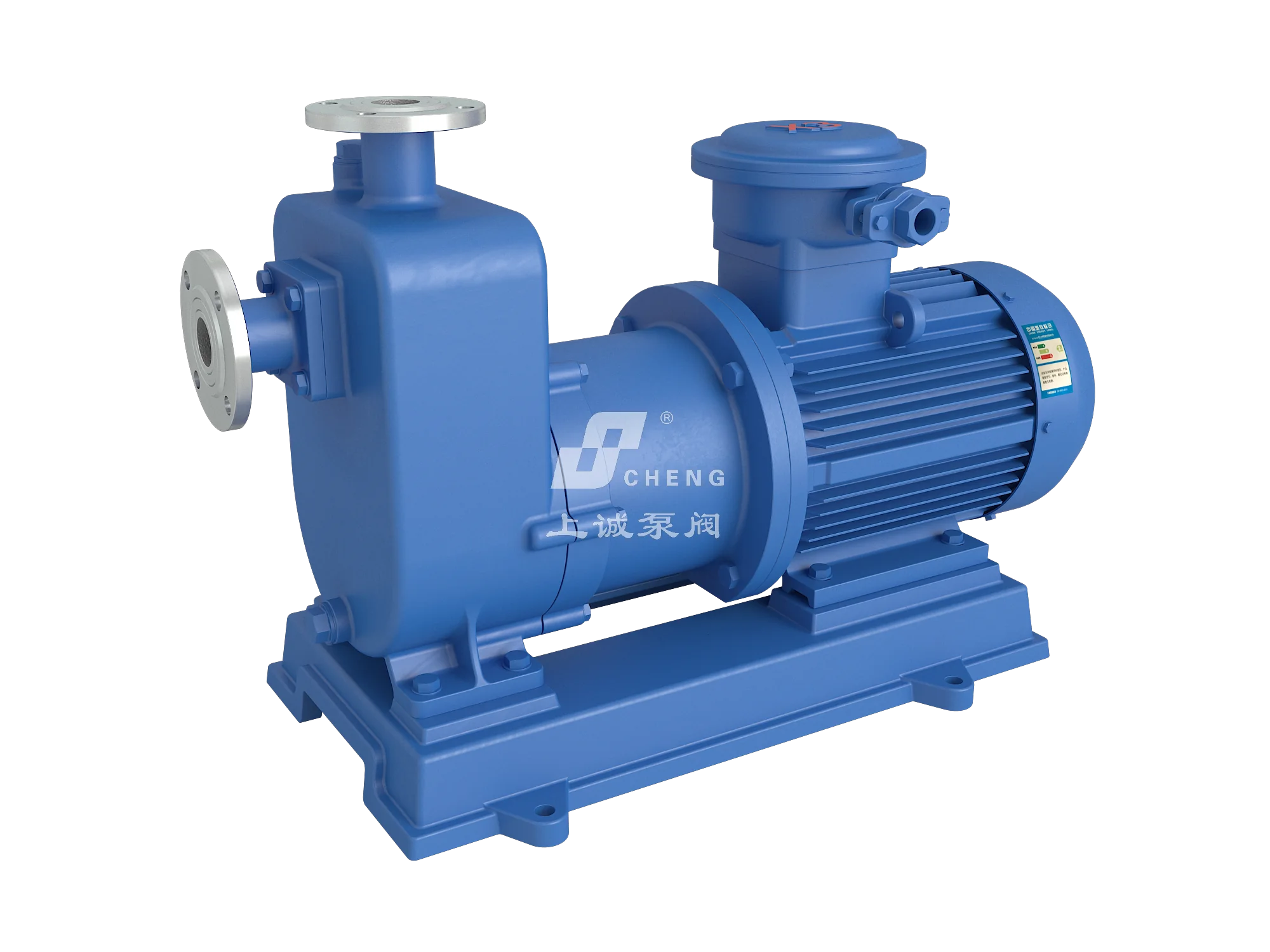

Self-Priming Magnetic Drive Pump
Metallic self priming magnetic drive pump for compatible clean liquids. Review initial filling and suction conditions; self-priming does not permit dry running.
View model details ↗

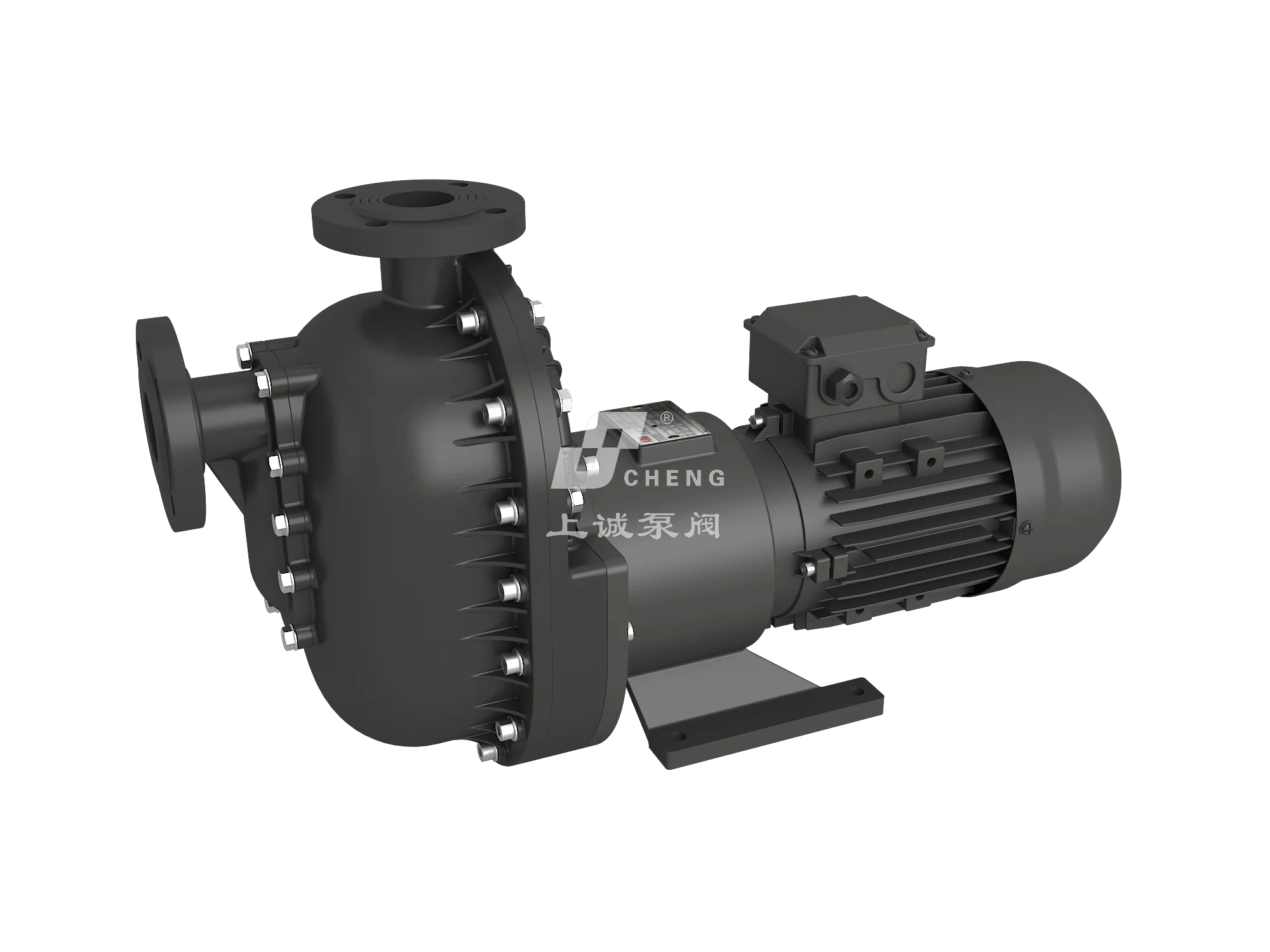

Plastic Self-Priming Magnetic Pump
Reinforced-polypropylene self-priming magnetic pump for compatible corrosive liquids. Confirm wetted-material compatibility, initial filling and suction conditions.
View model details ↗TYPICAL APPLICATIONS
- Chemical transfer
- Acid and alkali handling
- Electroplating lines
- Process circulation
SERIES ADVANTAGES
- Sealless magnetic drive
- Corrosion-resistant wetted parts
- Compact close-coupled arrangement
- Designed for clean liquid service
INFORMATION FOR SELECTION
- 01Liquid name and concentration
- 02Operating temperature
- 03Required flow and head
- 04Specific gravity and viscosity
APPLICATION FIT
Where this series fits—and what to confirm first.
Corrosive or leakage-sensitive clean-liquid transfer where shaft-seal leakage is unacceptable.
For solids, sludge or highly variable liquids, review an air-operated diaphragm pump instead.
- Use with clean liquids unless the selected construction explicitly allows particles.
- Confirm compatibility for every wetted component against the chemical, concentration and temperature.
- Dry running can damage internal bearing and friction components.
ENGINEERING SUPPORT
Before Requesting a Quote
Magnetic pump selection requires the complete duty. Provide:
- Chemical name and concentration
- Operating temperature
- Required flow
- Total head or discharge pressure
- Specific gravity and viscosity
- Solids or crystallization risk
- Suction conditions
- Wetted-material compatibility requirements
- Operating hours
- Motor and electrical requirements
- Quantity
Use the Selection Guide to prepare the duty, then choose the relevant model above and send conditions through the existing inquiry page. Include operating hours and crystallization concerns in the additional requirements field.
