TYPICAL APPLICATIONS
- Chemical transfer
- Pharmaceutical and electroplating lines
- Environmental and wastewater treatment systems
- Dyeing, paper and utility transfer
Request a quote ↗← Magnetic Drive Pumps
ZCQ
Self-Priming Magnetic Drive Pump
Sealless self-priming transfer for clean, leakage-sensitive process liquids.
Inquire about this model ↗MODEL / ZCQ
SELECTION OVERVIEW
Self-priming performance and material compatibility must be checked together.
ZCQ combines a self-priming centrifugal arrangement with magnetic-coupling drive. Eliminating the conventional dynamic shaft seal helps control external leakage while the integral priming chamber supports suction-lift installations.
PRODUCT VIEWS
Inspect the product from every side.

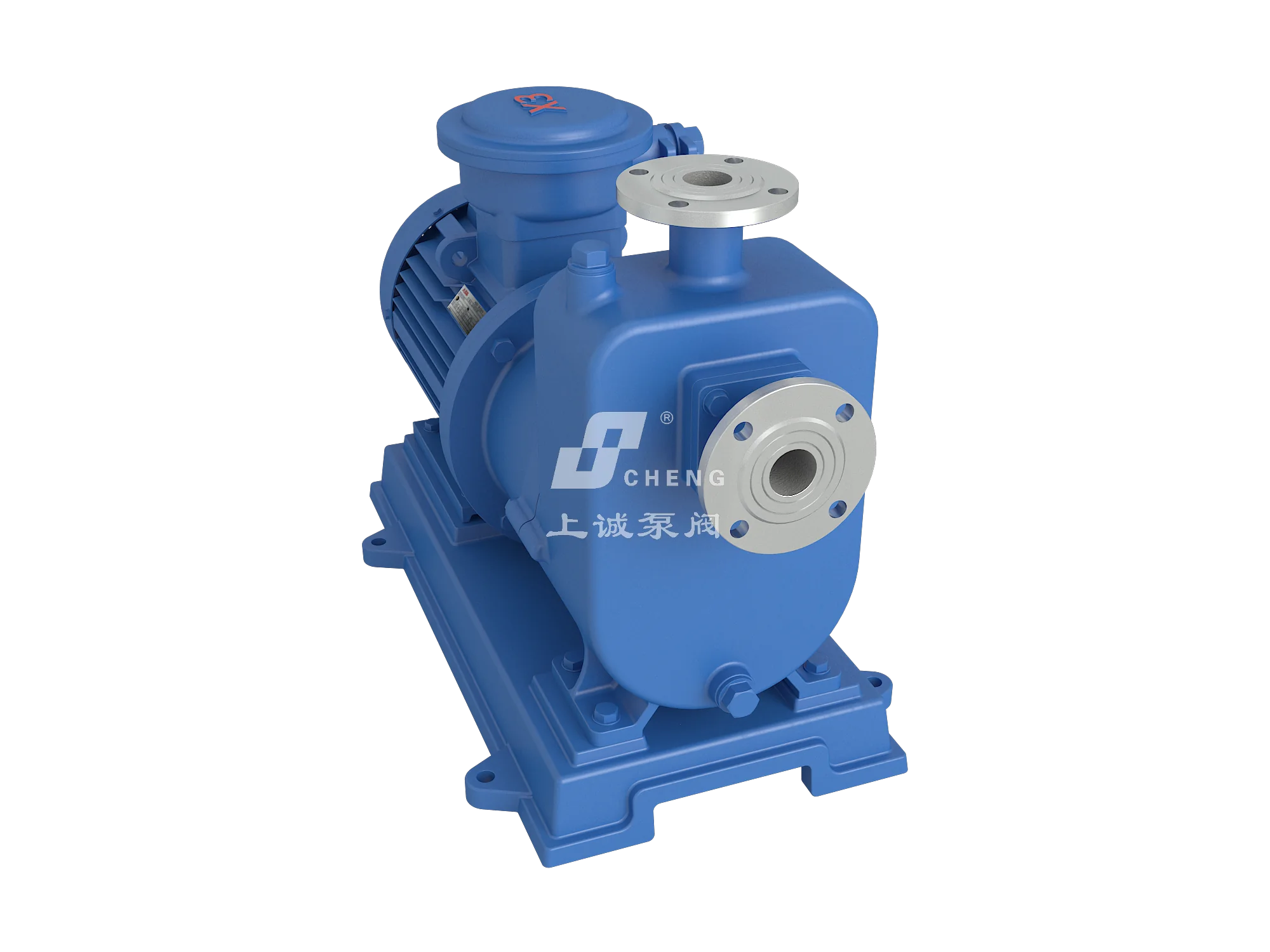

VIEW / 01

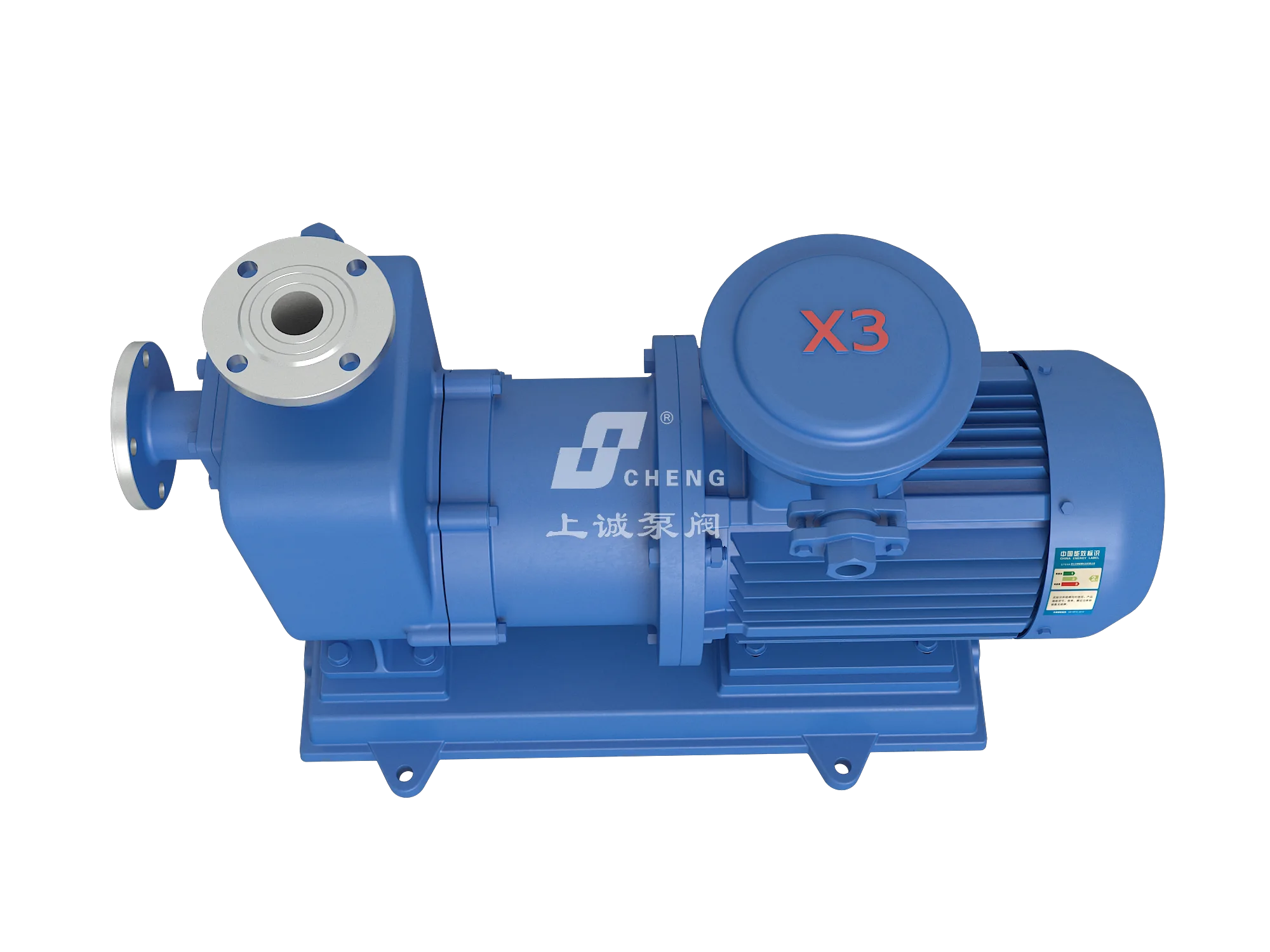

VIEW / 02

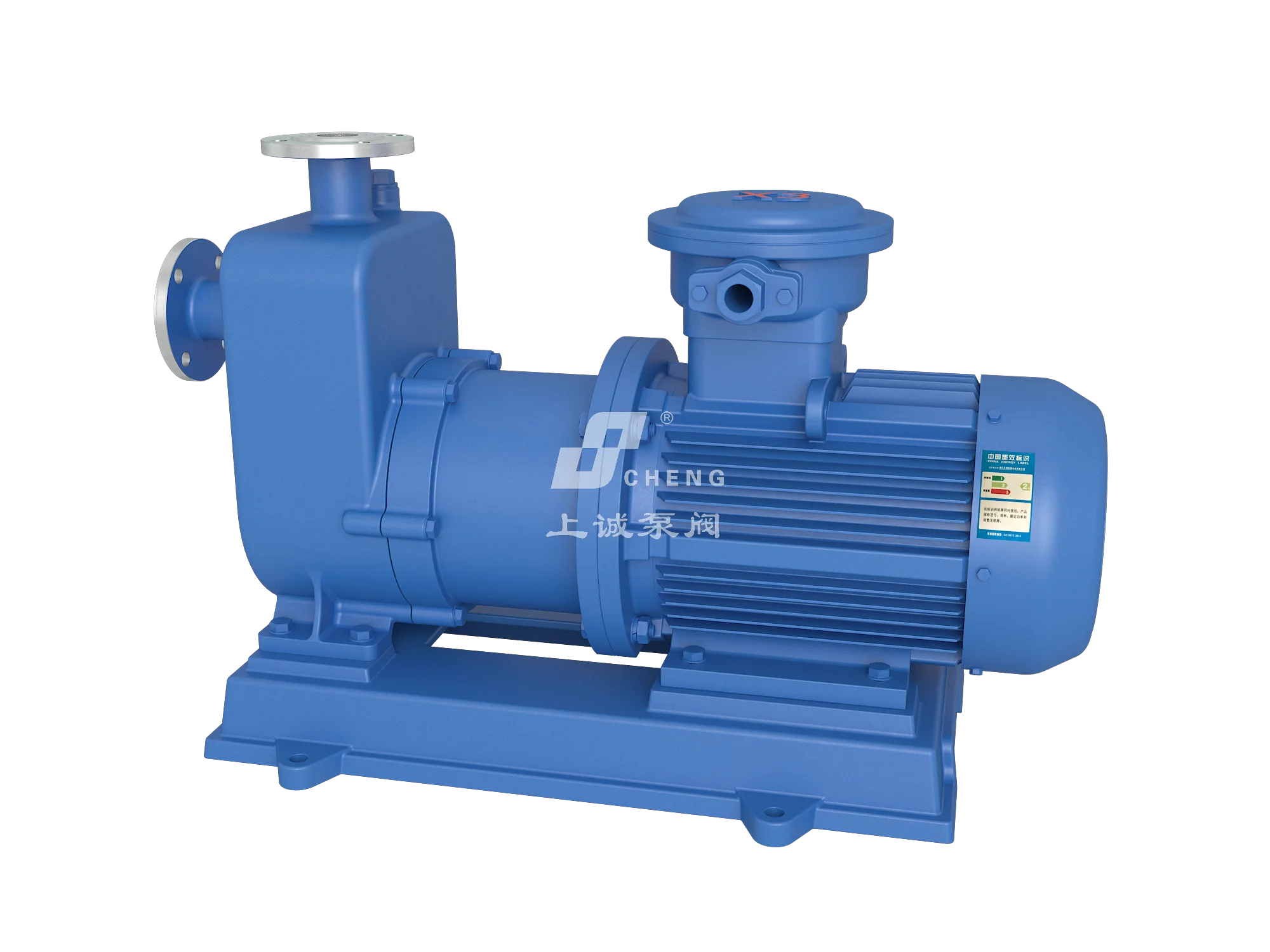

VIEW / 03

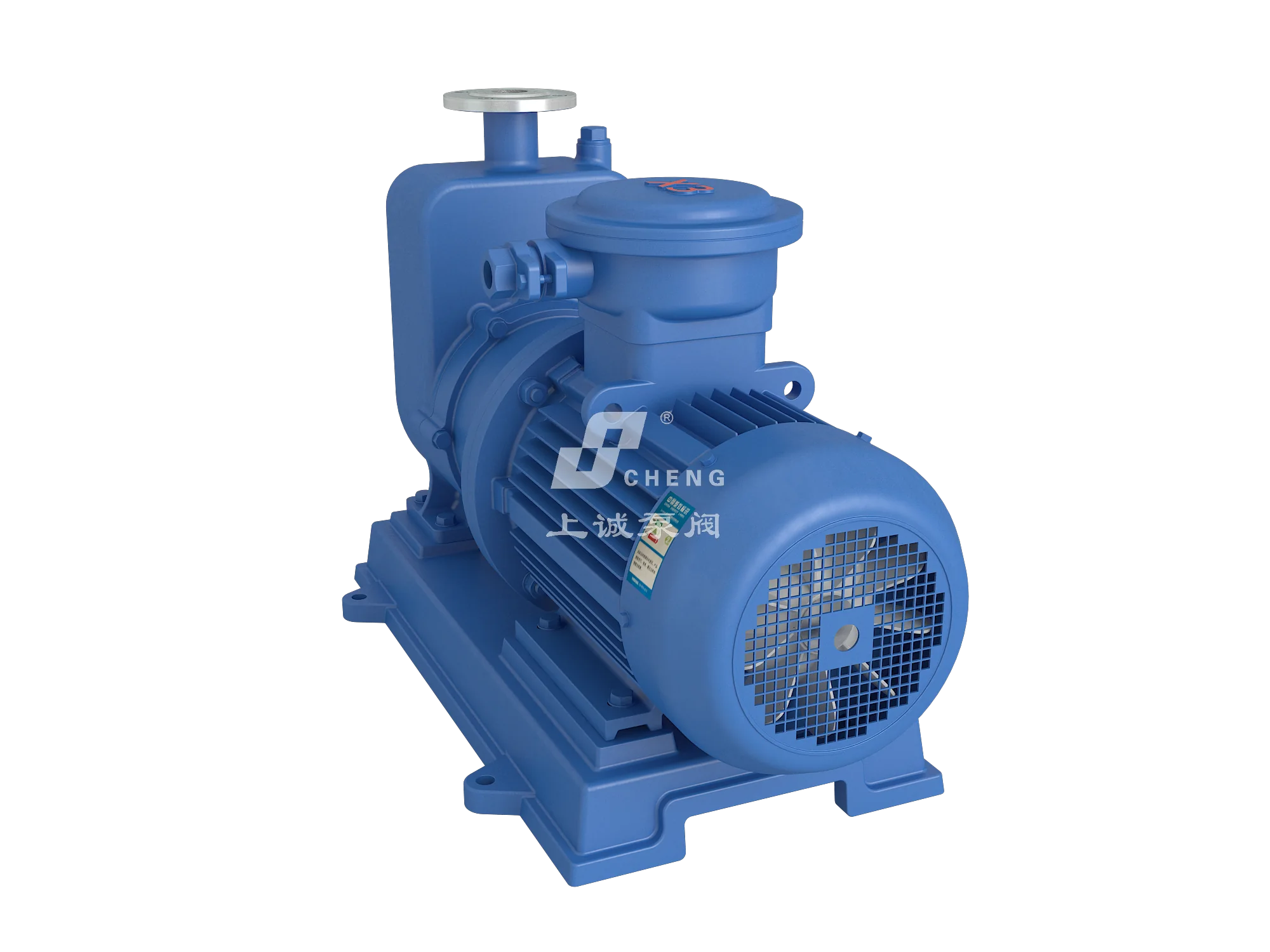

VIEW / 04

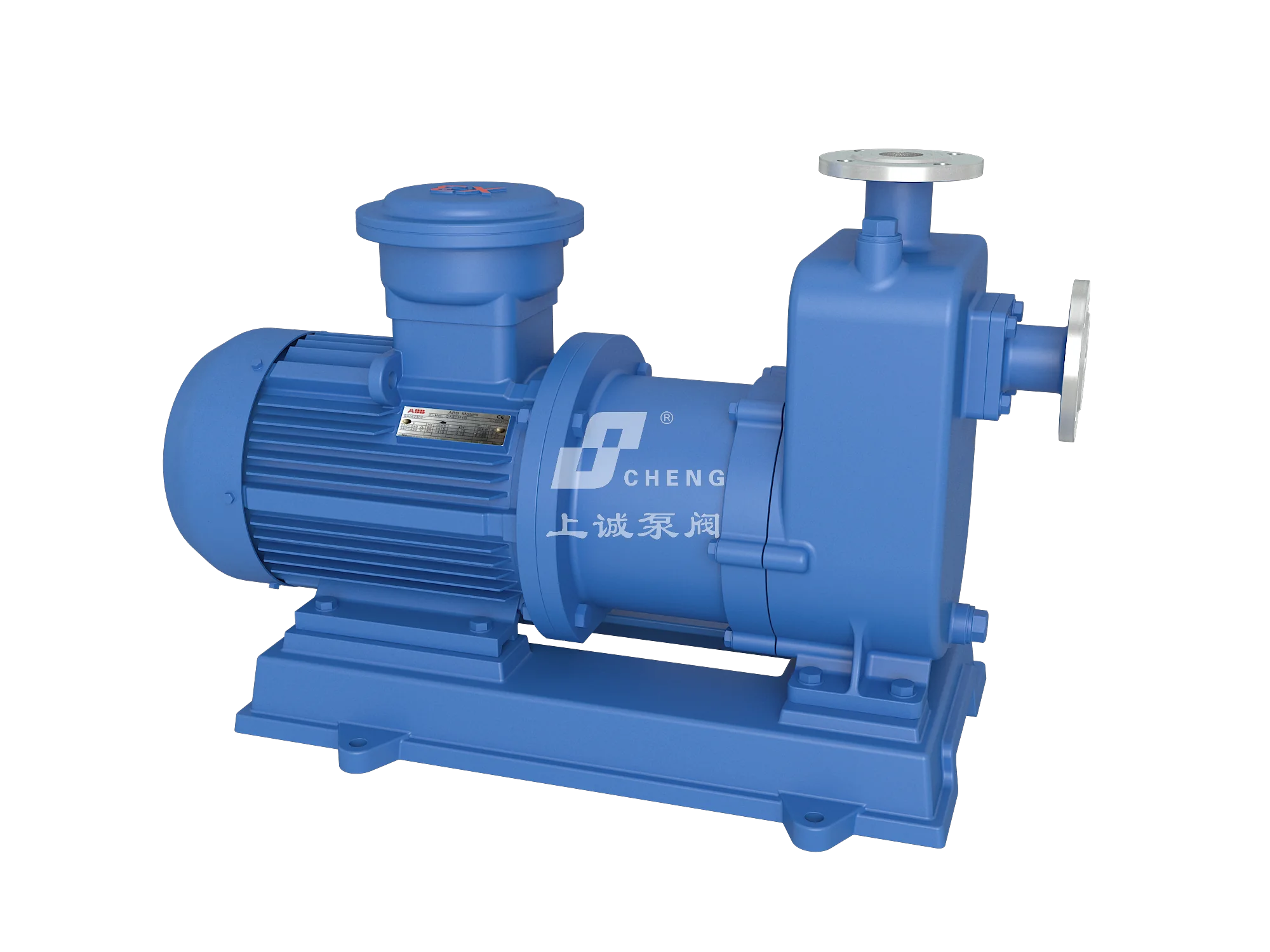

VIEW / 05
VIEW / 06INFORMATION REQUIRED
- Liquid, concentration and temperature
- Required flow and total head
- Suction lift and suction-line arrangement
- Specific gravity, viscosity, material and motor requirements
OPERATING NOTES
- Fill the pump casing before initial start and never operate the magnetic drive dry.
- Use with clean liquids and confirm every wetted material against the actual chemical.
- Keep the suction line short, airtight and correctly sized; verify practical suction lift at the installation.
KEY DESIGN POINTS
Built around suction conditions, liquid compatibility and leakage control.
Sealless magnetic-coupling drive
Integrated self-priming arrangement
Close-coupled compact installation
Stainless-steel wetted construction options
TECHNICAL DOCUMENT
Magnetic drive pump series catalog.
Review magnetic-drive pump configurations, performance data, construction, materials, dimensions, operating guidance and model selection information.
View or download PDF →Official Shangcheng watermarked document · PDF · 52 pagesRELATED TECHNICAL GUIDE
Review self-priming conditions with the chemical duty.
Use the chemical magnetic pump selection guide to check liquid conditions, materials, flow, head and suction arrangement before choosing a ZCQ configuration.
Compare ZCQ with CQ and CQB-F in the magnetic-drive series selection guide.
MODEL INQUIRY
Let us verify the operating point.
Send the liquid, concentration, flow, head, temperature, suction lift and installation details together with the requested model.
