G SANITARY SERIES

Sanitary Progressive Cavity Pump

Stainless steel progressive cavity configurations for process duties requiring cleanable wetted surfaces and reviewed connection arrangements.

Inquire about this model →

MODEL / G SANITARY G Sanitary Progressive Cavity Pump

PRODUCT OVERVIEW

Review the liquid, cleaning method and connection before selecting the configuration.

G20-1 through G135-2 sanitary configurations are based on the G progressive cavity pump family. The product source specifies stainless steel wetted parts, smooth wetted surfaces and sanitary quick-connect, clamp or flange connection options. Final selection requires review of the medium, viscosity, solids, temperature, cleaning method, duty and installation.

PRODUCT VIEW

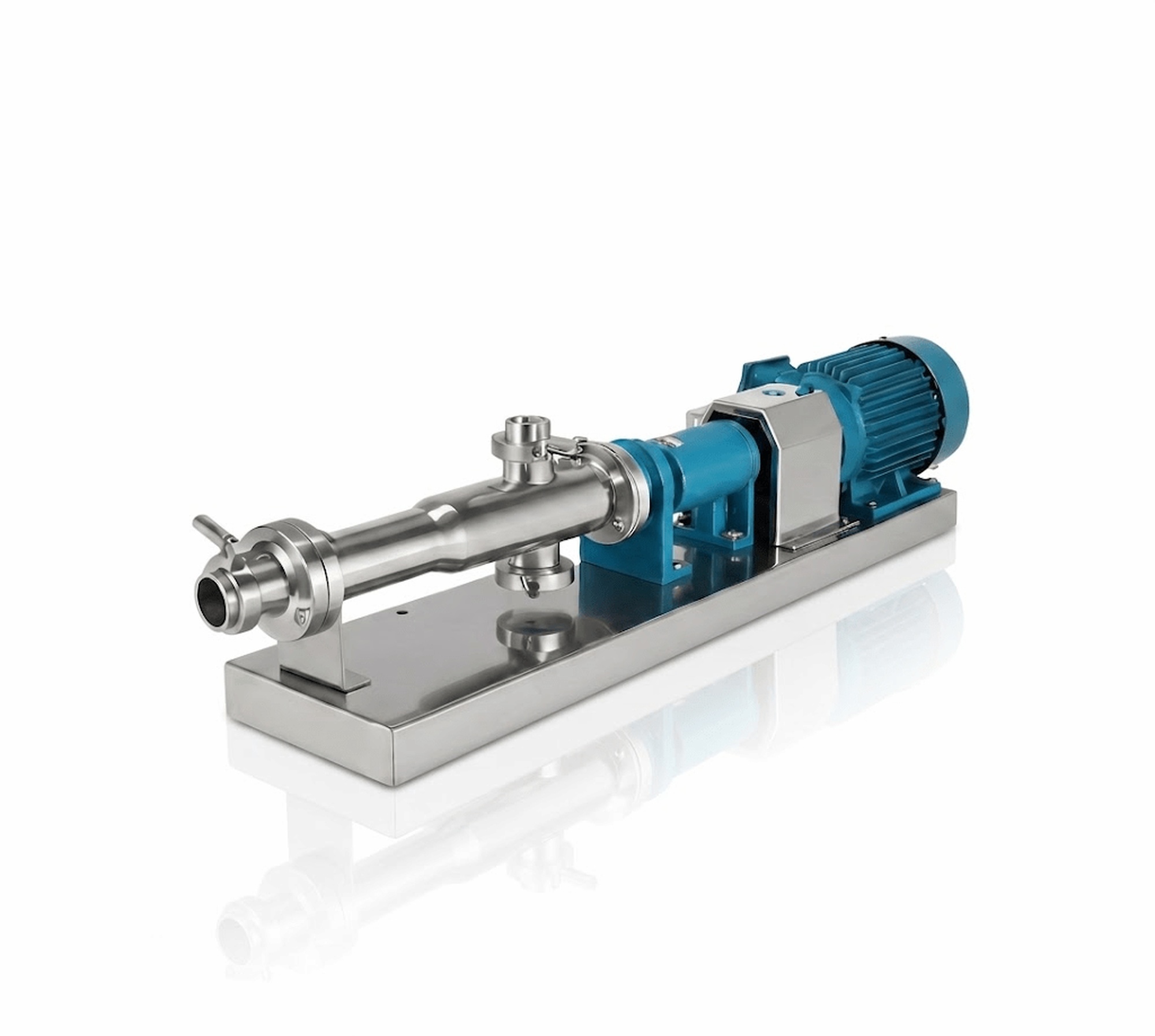

G Sanitary Progressive Cavity Pump

Sanitary Progressive Cavity Pump with stainless steel wetted parts

TYPICAL MEDIA

Process liquids that need a reviewed sanitary transfer arrangement.

The source product information lists food slurry, sauces, seasonings, dairy products, juice, pharmaceutical ointments, emulsions, cosmetic liquids, viscous syrup and sanitary media containing fine particles. Compatibility of all wetted materials must be confirmed for the actual liquid and cleaning medium.

INFORMATION REQUIRED

Liquid name, composition, viscosity and solids
Required capacity and discharge pressure
Operating temperature and cleaning method
Required connection and installation arrangement
Material and stator requirements

SELECTION REVIEW

Confirm the actual liquid and cleaning medium against every wetted material.
Review flow, discharge pressure, viscosity, solids and temperature together.
Confirm the selected connection and installed pipework arrangement.

KEY DESIGN POINTS

Four details to review before confirming the configuration.

Stainless wetted parts

Specified stainless steel wetted components support configuration review for the process medium and cleaning practice.

Connection options

Quick-connect, clamp and flange arrangements are available according to the selected configuration.

Viscous media review

Speed, pump size and stator selection should be reviewed against viscosity and operating conditions.

Cleanable surfaces

Smooth wetted surfaces and the installed pipework should be considered together with the cleaning procedure.

TECHNICAL PARAMETERS

Reference range for G20-1 to G135-2 sanitary configurations.

Item	Source reference
Flow range	0.8 to 150 m3/h
Pressure range	0.6 to 1.2 MPa
Speed range	18 to 960 r/min
Motor power	0.75 to 90 kW
Applicable temperature	-15 to 120 C
Port range	20 to 135 mm
Primary materials	Stainless steel wetted parts and food-grade rubber stator

These are reference data from the source product page. Final model, materials and operating point require confirmation for the actual process.

OPERATING NOTES

Keep the liquid path clean and confirm the operating point.

Before operation, confirm the medium and installation conditions. The source guidance advises keeping wetted components clean, avoiding damage to sealing surfaces, using a short and direct suction route where practical, and cleaning as required before and after operation to avoid retained product. Inspect stator, rotor and sealing components according to the maintenance procedure.

Read the progressive cavity pump speed-control guide →

MODEL INQUIRY

Let us review the process duty.

Send the liquid, flow, pressure, temperature, cleaning method, connection requirement and installation details for model review.

Request selection support →
