IH Chemical Pump

Product Overview
IH single stage single-suction cantilever chemicalCentrifugal pumpCarried out in accordance with ISO2858 international standard designed according to international standards ISO5199/DIS manufacturing, its technical indicators, compared with the old product, the efficiency of an average of about 5% lower NPSH about 2m, is a stable, zero component size has been standardized for energy efficient products is a National Mechanical Industry Ministry, to replace the oldCorrosion pumpAnd alternative energy import replacement products.

Features
Popularity of high, stable performance, stainless steel with 304,316 L, CD-4Mcu, 904,904 L, Hastelloy alloy density range P = 1.0 ~ 1.84 × 103kg/m3 medium temperature range of -20 ℃ ∽ +180 ℃ between ; system operating pressure ≤ 1.6MPa Flow 3.4 ∽ 460m3 / h Head H3.6 ∽ 132m

Usage
IH-type pumps suitable for chemical, petroleum, petrochemical, metallurgy, light industry, printing and dyeing, pharmaceutical, environmental protection, desalination of seawater, marine oil, paper, food and other non-industrial sector delivery of solid particles of organic or inorganic chemical medium, oil products and corrosive liquids.

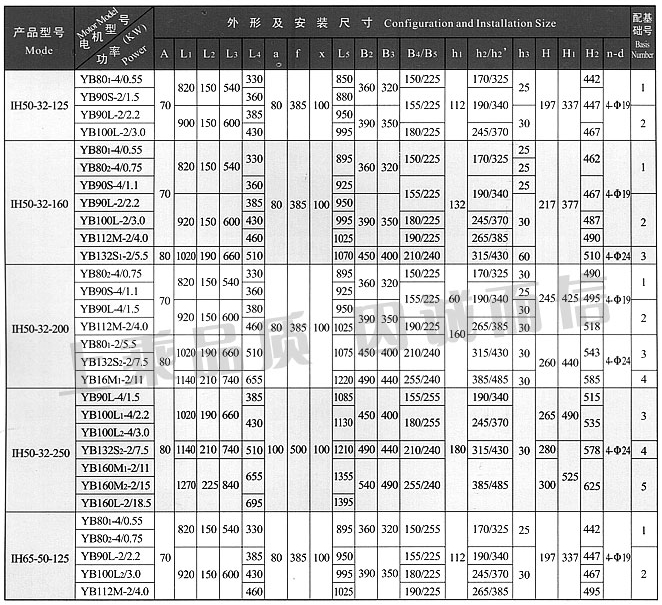

installation size

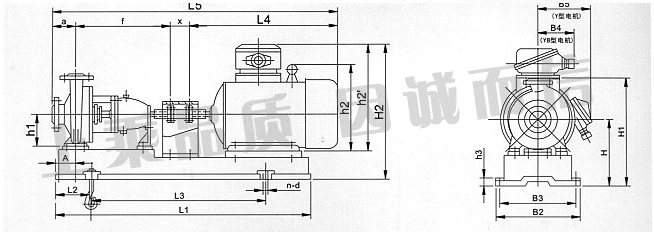

installation size and dimension

Performance Parameters

Model Import ← Export → Flow Head With motor Impeller diameter
Import - Export - impeller (mm) (mm) (mm) mm mm (M3 / h) (M)
Speed r / min Power (KW) mm
IH25-25-125 25 25 4 20 2900 1.1 125
IH25-25-160 25 25 4 32 2900 1.5 160
IH32-25-125 32 25 5 20 2900 1.5 125
IH32-25-160 32 25 5 32 2900 2.2 160
IH32-25-200 32 25 5 50 2900 3 200
IH40-32-125 40 32 7 20 2900 1.5 125
IH40-32-160 40 32 7 32 2900 2.2 160
IH40-32-200 40 32 7 50 2900 4 200
IH50-32-125 50 32 12.5 20 2900 2.2 125
IH50-32-125 50 32 6.3 5 1450 0.55 125
IH50-32-160 50 32 12.5 32 2900 3 160
IH50-32-160 50 32 6.3 8 1450 0.55 160
IH50-32-200 50 32 12.5 50 2900 5.5 200
IH50-32-200 50 32 6.3 12.5 1450 0.75 200
IH50-32-250 50 32 12.5 80 2900 11 250
IH50-32-250 50 32 6.3 20 1450 1.5 250
IH65-50-125 65 50 25 20 2900 3 125
IH65-50-125 65 50 12.5 5 1450 0.55 125
IH65-50-160 65 50 25 32 2900 5.5 160
IH65-50-160 65 50 12.5 8 1450 0.75 160
IH65-40-200 65 40 25 50 2900 11 200
IH65-40-200 65 40 12.5 12.5 1450 1.1 200
IH65-40-250 65 40 25 80 2900 15 250
IH65-40-250 65 40 12.5 20 1450 2.2 250
IH65-40-315 65 40 25 125 2900 30 315
IH65-40-315 65 40 12.5 32 1450 4 315
IH80-65-125 80 65 50 20 2900 5.5 125
IH80-65-125 80 65 25 5 1450 0.75 125
IH80-65-160 80 65 50 32 2900 7.5 160
IH80-65-160 80 65 25 8 1450 1.1 160
IH80-50-200 80 50 50 50 2900 15 200
IH80-50-200 80 50 25 12.5 1450 2.2 200
IH80-50-250 80 50 50 80 2900 30 250
IH80-50-250 80 50 25 20 1450 4 250
IH80-50-315 80 50 50 125 2900 45 315
IH80-50-315 80 50 25 32 1450 5.5 315
IH100-80-125 100 80 100 20 2900 11 125
IH100-80-125 100 80 50 5 1450 1.5 125
IH100-80-160 100 80 100 32 2900 15 160
IH100-80-160 100 80 50 8 1450 2.2 160
IH100-65-200 100 65 100 50 2900 30 200
IH100-65-200 100 65 50 12.5 1450 4 200
IH100-65-250 100 65 100 80 2900 45 250
IH100-65-250 100 65 50 20 1450 5.5 250
IH100-65-315 100 65 100 125 2900 75 315
IH100-65-315 100 65 50 32 1450 11 315
IH125-100-200 125 100 200 50 2900 45 200
IH125-100-200 125 100 100 12.5 1450 7.5 200
IH125-100-250 125 100 200 80 2900 75 250
IH125-100-250 125 100 100 20 1450 11 250
IH125-100-315 125 100 200 125 2900 110 315
IH125-100-315 125 100 100 32 1450 18.5 315
IH125-100-400 125 100 100 50 1450 30 400
IH150-125-250 150 125 200 20 1450 18.5 250
IH150-125-315 150 125 200 32 1450 30 315
IH150-125-400 150 125 200 50 1450 55 400
IH200-150-250 200 150 400 20 1450 37 250
IH200-150-315 200 150 400 32 1450 55 315
IH200-150-400 200 150 400 50 1450 90 400
IH250-200-315 250 200 550 32 1450 75 315
IH250-200-450 250 200 600 60 1450 160 450
