LQ3A series stainless steel rotor pump
LQ3A series stainless steel rotor pump (also called vacuum pumps), the Department of introducing advanced foreign technologies, absorbing, meticulously designed, was developed, the current leader of similar products, because it will not only have all the rotor pump (example : Pump, Cam pump, screw pump……], but, it is more unique characteristics of the high-viscosity material, so We called again this pump colloidal pump. The series not only uses the same pump rotor and other features It gives more uses 0.02~100Pa.S applies to high-temperature viscosity at 200 ° C in heavy oil, oil residue. Huai lubricating greases, rubber, glass fiber asphalt. toothpaste, cosmetics, Muddy food, medicine, oil, ink, Physical and chemical fiber pulp any performance guarantees that the original quality without the slightest impact. also applies to transport all kinds of corrosive liquids containing particles of solid particles.
installation size

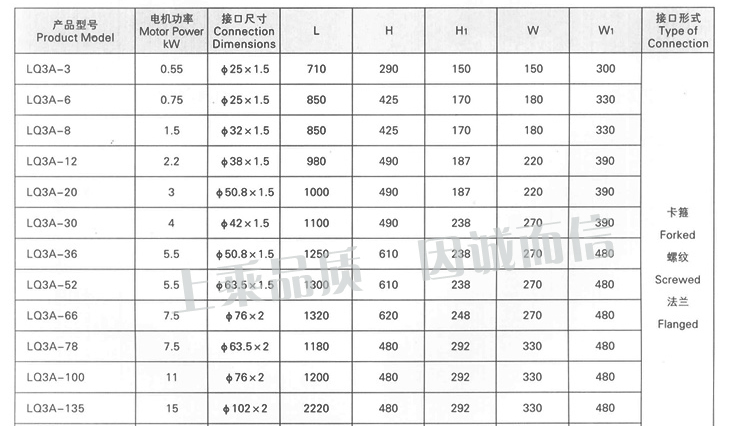

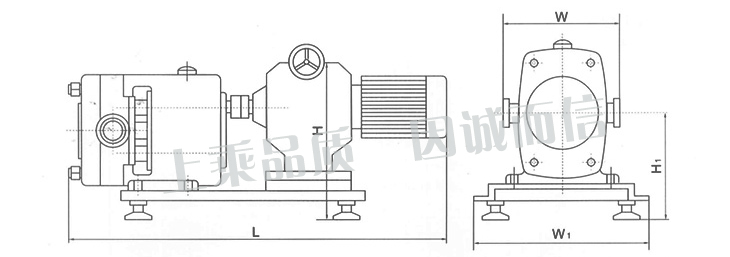

installation size and dimension
Performance Parameters
| Model | Emissions per 100r (L) |
Recommended speed range (Rpm) |
Corresponding flow (L / H) |
Motor Power (KW) |
| LQ3A-6 | 6 | 200 ~ 500 | 650 ~ 1600 | 1.5 |
| LQ3A-8 | 8 | 200 ~ 500 | 850 ~ 2160 | 1.5 |
| LQ3A-12 | 12 | 200 ~ 500 | 1300 ~ 3200 | 2.2 |
| LQ3A-20 | 20 | 200 ~ 500 | 2100 ~ 5400 | 3 |
| LQ3A-30 | 30 | 200 ~ 400 | 3200 ~ 6400 | 4 |
| LQ3A-36 | 36 | 200 ~ 400 | 3800 ~ 7600 | 5.5 |
| LQ3A-52 | 52 | 200 ~ 400 | 5600 ~ 11000 | 5.5 |
| LQ3A-66 | 66 | 200 ~ 400 | 7100 ~ 14000 | 7.5 |
| LQ3A-78 | 78 | 200 ~ 400 | 9000 ~ 18000 | 7.5 |
| LQ3A-100 | 100 | 200 ~ 400 | 11000 ~ 22000 | 11 |
| LQ3A-135 | 135 | 200 ~ 400 | 15000 ~ 30000 | 11 |
