QW No Block-up Sewage Pump

Product Overview
QW Submersible high efficiency without plugSewage pumpBlocked by anti-pandemic Road, design of hydraulic components, greatly enhance the dirt capacity, effective diameter of 5 times through the pump fiber material and a diameter of about 50% of the pump diameter solid particles. Designed, matching motor and reasonable, high efficiency, energy saving effect is remarkable. Mechanical seal is double tandem seal, made of hard wear-resistant tungsten carbide, a durable, wear, etc., can pump more than 800 hours continuous operation safety. Pump compact, small size, easy to move, easy to install, no need to build pumping stations, into the water can work, greatly reduce the construction cost. Indoor water pumping with the probe, whenPumpSide of the mechanical seal is damaged, the water into the oil chamber, the probe signal occurs, the implementation of the protection of the pump. According to user needs with automatic safety protectionControl cabinet, On the pump leak, leakage, overload and overtemperature monitoring to ensure safe and reliable pump operation. Double rail automatic coupling installation system, to the installation of the pump installation and maintenance, a great convenience, may not be required to access the sump. Float switch according to the required water level changes. Kai automatic pump stops, no special person to care. Motor run, but contained. Motor can be used according to applications outside the third nested loop water cooling system to ensure that pump the water (dry) state of safe operation. Installation with a fixed automatic coupling installation and free installation of two kinds of mobile can be used to meet different situations.

Structure Description
QW-based non-blockingSubmersible sewage pumpBy the motor and pump two parts, both through the oil separation chamber and the mechanical seal components separated by an electromechanical integration products, motor and pump combined with the same axis (rotor) pumps throughout the length of the short, compact structure. Equipped with multiple protection devices, making the pump run reliably, its main components function as follows:
Signal line 1: pump control cabinet with full protection, the protection of the pump all directions, including leakage, phase, short circuit, overheat, motor overload and other projects. Stator 8: Using B-or F-class insulation.
Leak probe 11: The device installed in the oil chamber, when the mechanical seal is damaged, the water into the oil chamber, the probe may issue a signal from the control system implemented to protect the pump.
Mechanical seal 13: Road tandem double seal, use anticorrosive hard tungsten carbide material, with the sealing reliability, wear-resistant, long service life.
Impeller 17: impeller single or dual channel flow structure, with strong capacity, through large fiber waste materials and reduce congestion, winding fault.
Pump 15: The impeller is equipped with, makes the pump with high efficiency.
Seal ring 18: Sandy Bay Office installed in the pump body, impeller because when I run Ershi Central Office wear seal rings can be replaced to ensure optimum efficiency pump to run.

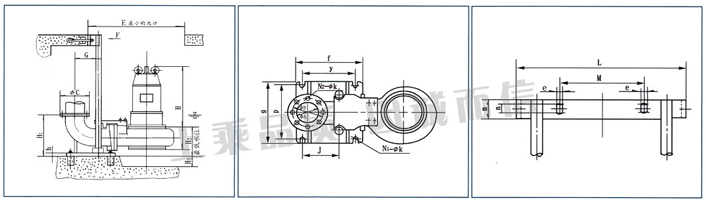

installation size

installation size and dimension

Performance Parameters

Model Head Specification Flow Nature Power
(KW)
Speed
(R / min)
Voltage
(V)
Caliber
(Mm)
Flow
(M3 / h)
Head
(M)
25-8-22 25 8 22 1.1 2900 380
32-10-15 32 10 15 1.5 2900
40-15-30 40 15 30 2.2 1900
50-20-7 50 20 7 0.75 1450
50-20-15 50 20 15 1.5 2900
50-15-25 50 15 25 2.2 2900
50-18-30 50 18 30 3 2900
65-25-15 65 25 15 2.2 2900
65-25-30 65 25 30 4 2900
80-40-7 80 40 7 2.2 1450
80-40-15 80 40 15 4 2900
80-65-25 80 65 25 7.5 2900
100-85-10 100 85 10 4 1450
100-100-15 100 100 15 7.5 1450
100-85-20 100 85 20 7.5 1450
100-100-25 100 100 25 11 1450
100-100-35 100 100 35 15 1450
125-115-15 125 115 15 15 1450
150-180-15 150 180 15 15 1450
150-180-20 150 180 20 18.5 1450
150-180-30 150 180 30 22 1450
150-180-35 150 180 35 30 1450
200-300-10 200 300 10 11 980
200-300-15 200 300 15 22 1450
200-300-20 200 300 20 30 1450
200-300-25 200 300 25 37 1450
250-600-10 250 600 10 30 980
250-600-12 250 600 12 37 1450
250-600-15 250 600 15 45 1450
250-600-20 250 600 20 55 1450
250-600-25 250 600 25 75 1450
300-800-12 300 800 12 45 980
300-480-15 300 480 15 45 1450
300-600-20 300 600 20 55 1450
300-800-20 300 800 20 20 1450
