Sewage PumpsHome > Products > Sewage Pumps

JYWQ/JPWQ series automatically stirring sewage pump

Product Overview
JYWQ, JPWQ series automatic mixSewage pumpIs in general based on the type of sewage pump automatic mixing device, the device with the motor shaft rotation, resulting in strong mixing force, the sediment will be stirred into the water pool suspended solids, discharge suction pump, the pump's attempts to prevent the increase and sewage capacity, once completed the drainage, decontamination, in addition to silt, save operating costs, is a clear advantage and practicality of environmentally friendly products.

Usage
1, the factories, commercial heavily polluted waste water.
2, urban sewage treatment, hospitals, hotels, the drainage system.
3, residential sewage drainage station.
4, air defense system, drainage stations, water plant water plant.
5, municipal engineering, construction sites.
6, exploration, mining, power plants, matching attached machine.
7, rural biogas digesters, irrigation, dredging Pond Sludge.

Structural characteristics
1, using a unique non-blocking double channel impeller structure and improve the Sewage discharge over-current capability and capacity
2, automatic mixing device, resulting in strong mixing force, the pool of deposits after the inhalation of suspended particles stirred into the impeller discharge, dredging up the role.
3, partition the base into two, mixing with the water independently of each other.
4, a double mechanical seal mechanical seal, long in the oil chamber, guaranteesPumpSafe and reliable operation.
5, the Deputy impeller structure of hydrodynamic seals, both secondary seal, and protect the mechanical seal, and balance the axial force, extending bearing life.
6, pump wiring cavity with leak detection probe, when leakage occurs, the probe signal, the control system implemented to protect the pump. The company can be equipped with automatic safety protectionControl cabinet.
7 stator with B-and F class insulation, equipped with thermal protection, and when the motor overload, fever, protector timely action, the implementation of the pump and motor absolute protection.
8, oil chamber, the probe with water, when the mechanical seal is damaged, water enters the oil chamber, the probe signal to the pump control system implemented by the protection.
9, JPW belt loop cooling system, can guarantee the minimum water level in the pool pump to work.

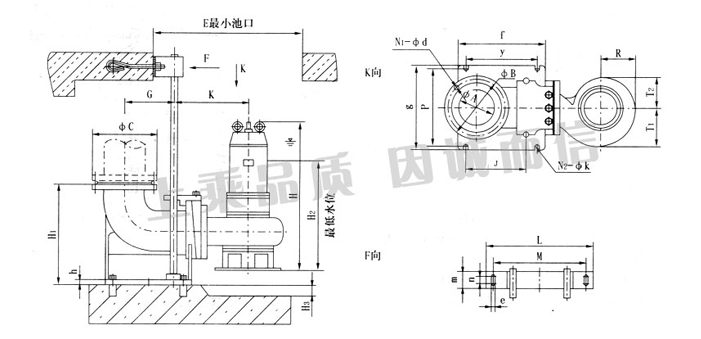

installation size

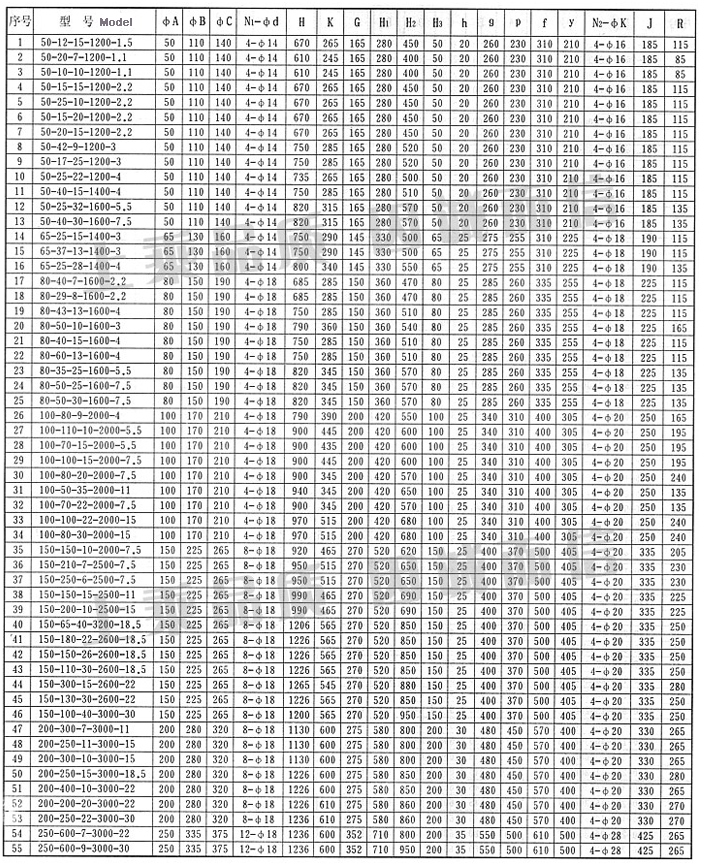

installation size and dimension

Performance Parameters

Serial number	Model	Discharge bore (Mm)	Flow (M3 / h)	Yang Cheng (M)	Mixing diameter (Mm)	Speed (R / min)	Power (KW)	Efficiency (%)	Automatic coupler
1	50-12-15-1500-1.5	50	12	15	1200	2900	1.5	48	GAK-50
2	50-20-7-1200-1.1	50	20	7	1200	2900	1.1	62	GAK-50
3	50-10-10-1200-1.1	50	10	10	1200	2900	1.1	56	GAK-50
4	50-15-15-1200-2.2	50	15	15	1200	2900	2.2	51	GAK-50
5	50-25-10-1200-2.2	50	25	10	1200	2900	2.2	65	GAK-50
6	50-15-20-1200-2.2	50	15	20	1200	2900	2.2	56	GAK-50
7	50-20-15-1500-2.2	50	20	15	1200	2900	2.2	56	GAK-50
8	50-42-9-1200-3	50	42	9	1200	2900	3	56	GAK-50
9	50-17-25-1200-3	50	17	25	1200	2900	3	56	GAK-50
10	50-25-22-1200-4	50	25	22	1200	2900	4	62	GAK-50
11	50-40-15-1400-4	50	40	15	1400	2900	4	70	GAK-50
12	50-25-32-1600-5.5	50	25	32	1600	2900	5.5	52	GAK-50
13	50-40-30-1600-7.5	50	40	30	1600	2900	7.5	68	GAK-50
14	65-25-28-1400-4	65	25	15	1400	2900	3	65	GAK-65
15	65-37-13-1400-3	65	37	13	1400	2900	3	62	GAK-65
16	65-25-28-1400-4	65	25	28	1400	2900	4	60	GAK-65
17	80-40-7-1600-2.2	80	10	7	1600	2900	2.2	54	GAK-80
18	80-29-8-1600-2.2	80	29	8	1600	2900	2.2	54	GAK-80
19	80-43-13-1600-4	80	43	13	1600	2900	4	63	GAK-80
20	80-50-10-1600-3	80	50	10	1600	1450	3	76	GAK-80
21	80-40-15-1600-4	80	40	15	1600	2900	4	70	GAK-80
22	80-60-13-1600-4	80	60	13	1600	2900	4	70	GAK-80
23	80-35-25-1600-5.5	80	35	25	1600	2900	5.5	64	GAK-80
24	80-50-25-1600-7.5	80	50	25	1600	2900	7.5	70	GAK-80
25	80-50-30-1600-7.5	80	50	30	1600	2900	7.5	70	GAK-80
26	100-80-9-2000-4	100	80	9	2000	1450	4	62	GAK-100
27	100-110-10-2000-5.5	100	110	10	2000	1450	5.5	71	GAK-100
28	100-70-15-2000-5.5	100	70	15	2000	1450	5.5	71	GAK-100
29	100-100-15-2000-7.5	100	100	15	2000	1450	7.5	73	GAK-100
30	100-80-20-2000-7.5	100	80	20	2000	2900	7.5	71	GAK-100
31	100-50-35-2000-11	100	20	35	2000	2900	11	68	GAK-100
32	100-70-22-2000-7.5	100	70	22	2000	2900	7.5	70	GAK-100
33	100-100-22-2000-15	100	100	22	2000	1450	15	61	GAK-100
34	100-80-30-2000-15	100	80	30	2000	1450	15	67	GAK-100
35	150-150-10-2000-7.5	150	150	10	2000	1450	7.5	75	GAK-150
36	150-210-7-2500-7.5	150	210	7	2500	1450	7.5	78	GAK-150
37	150-250-6-2500-7.5	150	250	6	2500	1450	7.5	79	GAK-150
38	150-150-15-2500-11	150	150	15	2500	1450	11	79	GAK-150
39	150-200-10-2500-15	150	200	10	2500	1450	15	73	GAK-150
40	150-65-40-3200-18.5	150	65	40	3200	1450	18.5	58	GAK-150
41	150-180-22-2600-18.5	150	180	22	2600	1450	18.5	75	GAK-150
42	150-150-26-2600-18.5	150	150	26	2600	1450	18.5	72	GAK-150
43	150-110-30-2600-18.5	150	110	30	2600	1450	18.5	72	GAK-150
44	150-300-15-2600-22	150	300	15	2600	1450	22	76	GAK-150
45	150-130-30-2600-22	150	130	30	2600	1450	22	70	GAK-150
46	150-100-40-3000-30	150	100	40	3000	1450	30	64	GAK-150
47	200-300-7-3000-11	200	300	7	3000	1450	11	75	GAK-200
48	200-250-11-3000-15	200	250	11	3000	1450	15	72	GAK-200
49	200-300-10-3000-15	200	300	10	3000	1450	15	75	GAK-200
50	200-250-15-3000-18.5	200	250	15	3000	1450	18.5	72	GAK-200
51	200-400-10-3000-22	200	400	10	3000	1450	22	75	GAK-200
52	200-200-20-3000-22	200	200	20	3000	1450	22	73	GAK-200
53	200-250-22-3000-30	200	250	22	3000	1450	30	73	GAK-200
54	250-600-7-3000-22	250	600	7	3000	1450	22	78	GAK-250
55	250-600-9-3000-30	250	600	9	3000	1450	30	78	GAK-250
