CYZ-A Suction Centrifugal Oil Pump
Product Overview
CYZ-A Self-priming centrifugalPumpIs based on technical data at home and abroad, digestion, absorption, improved development to become the latest pumps, domestic blank unique, the pumps used in petroleum industry, land-based oil depots, tanker ideal and suitable for marine cargo pumps, bilge pumps, fire pumps and ballast pumps and cooling water circulation in the machine were transport gasoline, kerosene, diesel, aviation fuel and other petroleum products and water, water, medium temperature -20 ℃ ~ 140 ℃, such as the chemical liquid can be use corrosion-resistant mechanical seals.
Features
Pipeline valve in the end do not need to work just before the pump body to ensure priming oil, over-current material: cast iron, stainless steel, flow range :3.2-600m3 / h Head range :12-80m
Usage
The self-priming pump has a strong capacity for oil depots, tanker, tankers, transport large ships, petrochemical companies, the oil transportation, the maximum working pressure: 1.6Mpa, temperature range -15 ℃ ~ 95 ℃.

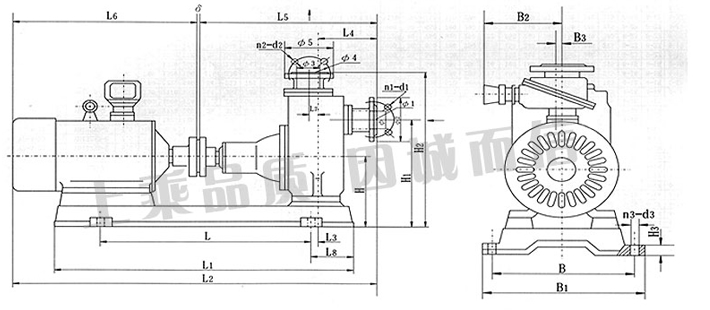

installation size

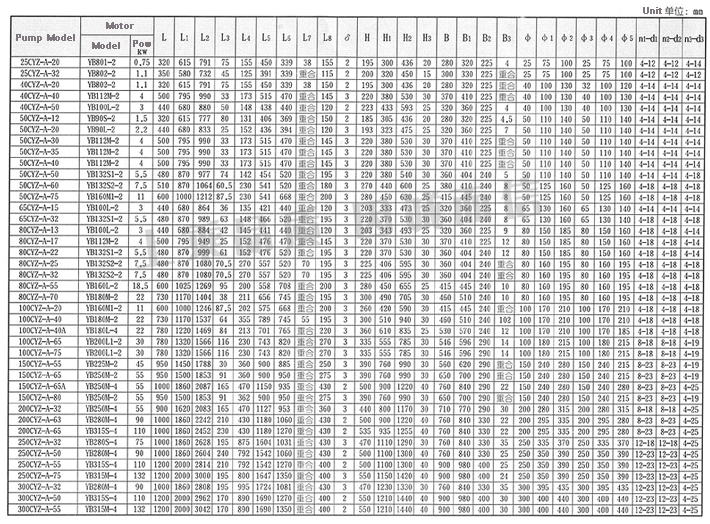

installation size and dimension
Performance Parameters
| Model | Flow | Head (M) |
Suction (M) |
Speed (R / min) |
Motor Power (KW) |
Diameter mm | ||
| (M3/ H) | (L / S) | Inhale | Discharge | |||||
| 25CYZ-A-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 0.75 | 25 | 25 |
| 25CYZ-A-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.1 | 25 | 25 |
| 40CYZ-A-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.1 | 40 | 32 |
| 40CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 40 |
| 50CYZ-A-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 1.5 | 50 | 50 |
| 50CYZ-A-20 | 18 | 5 | 20 | 6.5 | 2900 | 2.2 | 50 | 50 |
| 50CYZ-A-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-A-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-A-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 5.5 | 50 | 50 |
| 50CYZ-A-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 7.5 | 50 | 50 |
| 50CYZ-A-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 11 | 50 | 50 |
| 65CYZ-A-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 3 | 65 | 50 |
| 65CYZ-A-32 | 25 | 6.9 | 32 | 6 | 2900 | 5.5 | 65 | 50 |
| 80CYZ-A-13 | 35 | 9.7 | 13 | 6 | 2900 | 3 | 80 | 65 |
| 80CYZ-A-17 | 43 | 12 | 17 | 6 | 2900 | 4 | 80 | 65 |
| 80CYZ-A-22 | 40 | 11.1 | 22 | 6 | 2900 | 5.5 | 80 | 65 |
| 80CYZ-A-25 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-A-32 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-A-55 | 60 | 16.7 | 55 | 6 | 2900 | 18.5 | 80 | 80 |
| 80CYZ-A-70 | 60 | 16.7 | 70 | 6 | 2900 | 22 | 80 | 80 |
| 100CYZ-A-20 | 100 | 27.8 | 20 | 6 | 2900 | 11 | 100 | 80 |
| 100CYZ-A-40 | 100 | 27.8 | 40 | 6 | 2900 | 22 | 100 | 100 |
| 100CYZ-A-40A | 100 | 27.8 | 40 | 6 | 1450 | 22 | 100 | 100 |
| 100CYZ-A-65 | 100 | 27.8 | 65 | 6 | 2900 | 30 | 100 | 100 |
| 100CYZ-A-75 | 70 | 19.4 | 75 | 6 | 2900 | 30 | 100 | 100 |
| 150CYZ-A-45 | 170 | 47.2 | 45 | 5 | 2900 | 37 | 150 | 100 |
| 150CYZ-A-55 | 170 | 47.2 | 55 | 5 | 2900 | 45 | 150 | 100 |
| 150CYZ-A-65 | 170 | 47.2 | 65 | 5 | 2900 | 55 | 150 | 100 |
| 150CYZ-A-80 | 160 | 44.4 | 80 | 5 | 2900 | 55 | 150 | 100 |
| 200CYZ-A-63 | 280 | 77.8 | 63 | 5 | 1450 | 90 | 200 | 150 |
| 250CYZ-A-50 | 400 | 111.1 | 50 | 5 | 1450 | 90 | 250 | 200 |
| 300CYZ-A-50 | 500 | 138.9 | 50 | 5 | 1450 | 110 | 300 | 250 |
