LQRY Hot Oil Pump

Product Overview
LQRY series of thermalPumpIs learned at home and abroad all kinds of advanced features hot oil circulation pump developed in our body heat carrier heating system to a wide range of use of the Bank of China, with reasonable structure, advanced technology, high efficiency, the thermal state long-term stable operation No leaks, no additional cooling system safe and reliable, has entered the oil, chemical, rubber, plastics, pharmaceuticals, weaving printing and dyeing, road construction, food and other various industrial fields, mainly used for transport of solid particles of the weak non-corrosive high-temperature liquid, temperature ≤ 350oC, is an ideal hot oil circulation pump.

Features
Reasonable structure, advanced technology, high efficiency, the thermal stability under long-term operation without leakage, no additional cooling system safe and reliable flow of 4.5 ~ 400m3 / h Head 15 ~ 85m, speed 2900r/min

Usage

LQRY typeConducting oil pumpThe pump can be widely used in petroleum, oil, boiler, construction, road maintenance, pharmaceutical, plastics, rubber, containing fibroblasts textile, printing and dyeing, food industry, is an ideal medium heat carrier circulating pump.

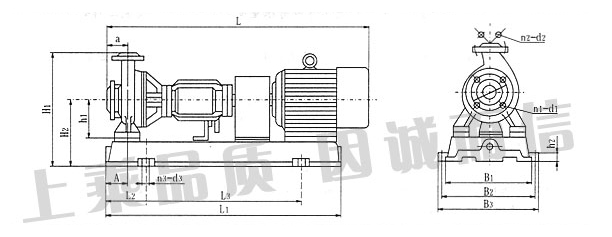

installation size

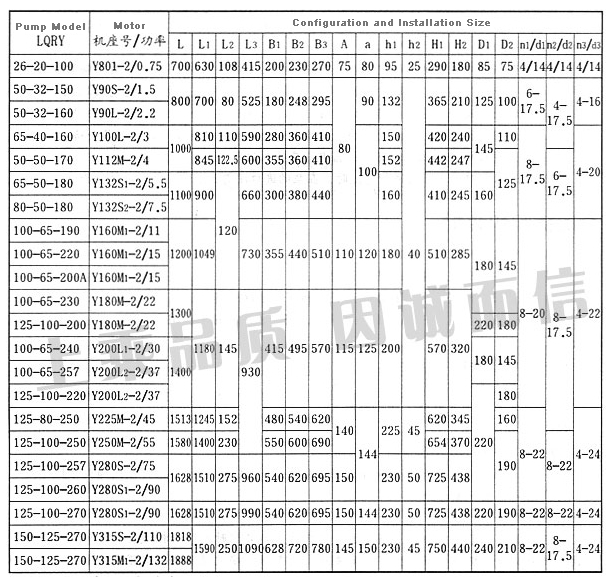

installation size and dimension

Performance Parameters

Model Flow
m3 / h
Head
m
Speed
r / min
Nominal power
(KW)
Cavitation margin
NPSH (m)
26-20-100 4.5 15 2825 0.75 08
50-32-150 8 22 2840 1.5 1.6
50-32-160 10 25 2840 2.2 1.8
65-40-160 12.5 25 2880 3 2.2
50-50-170 12.5 32 2890 4 2.5
65-50-180 32 32 2900 5.5 2.7
65-50-170 40 25 2900 5.5 2.7
80-50-180 40 40 2900 7.5 3.1
80-50-170 60 20 2900 7.5 3.1
100-65-190 60 38 2930 11 3.9
100-65-200 80 40 2930 15 3.5
100-65-220 58 50 2930 15 3.5
100-65-230 100 55 2940 22 3.6
125-100-190 155 30 2940 22 3.6
100-65-240 100 70 2950 30 4.1
100-65-257 100 80 2950 37 3.6
125-100-220 160 45 2950 37 3.6
125-80-250 160 60 2970 45 5
125-100-257 200 60 2970 55 6
125-100-260 260 70 2970 75 6.8
125-100-270 300 70 2970 90 8
125-100-270 220 85 2970 90 6
150-125-270 340 76 2970 110 8.5
150-125-270 400 78 2970 132 9.8
