KCB Gear Oil Pump
Product Overview
2CY, KCB gear transmissionPump: The pump is suitable for transport all kinds of lubricating fluid has a temperature not higher than 70 ℃, For high temperature 300 ℃, can be customized heat pump, the pump does not apply to transport corrosive, containing hard particles or fibers highly volatile or low flash point liquids such as gasoline, benzene and so on.
Features
This pump simple and compact, easy to use and maintain, stainless steel gear pump can deliver edible oils, beverages. Flow range :1.1-150m3 / h, head range :13-250m, working pressure: ≤ 3.0MPa
Usage
KCB (2CY) gear oil pump for temperature less than 70 ℃), the viscosity is 5 × 10-5 ~ 1.5 × 10-3m2 / s of the solid particles and fiber materials, non-corrosive lubricant , heavy oil, light oil and edible oil industries such as oil with copper gear can deliver low flash point liquids such as gasoline, benzene and so on. Apply to oil depots, terminals, ships, factories, farms, mines, etc..

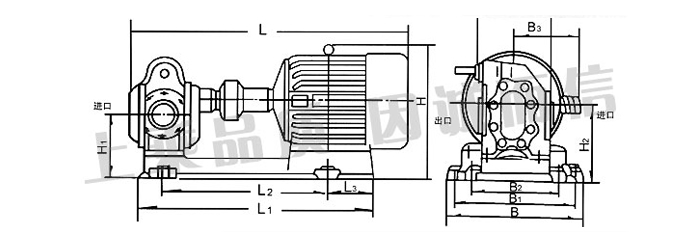

installation size

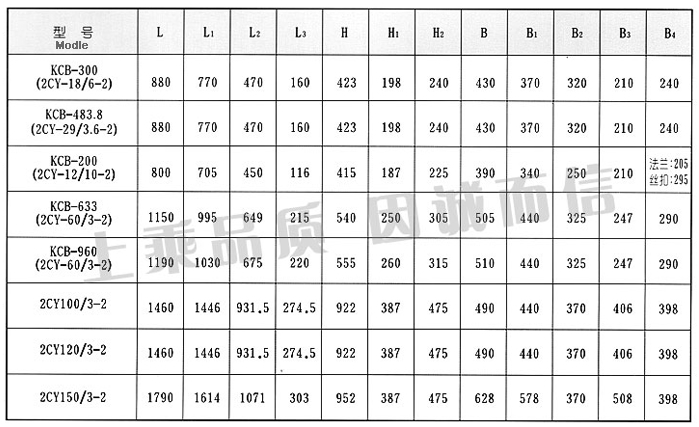

installation size and dimension
Performance Parameters
| Model | Caliber | Flow (L / min) |
Discharge pressure (MPa) |
Suction (M) |
Motor Power (KW) |
| KCB-18.3 2CY-1.1/14.5-2 |
3 / 4 | 18.3 | 14.5 | 5 | 1.5 |
| KCB-33.3 2CY-2/14.5-2 |
3 / 4 | 33.3 | 14.5 | 5 | 2.2 |
| KCB-55 2CY-3.3/3.3-2 |
1 " | 55 | 0.33 | 5 | 1.5 |
| KCB-83.5 2CY-5/3.5-2 |
1 " | 55 | 0.33 | 5 | 2.2 |
| KCB-83.3 2CY-5/5-2 |
11 / 2 " | 83.3 | 0.33 | 5 | 2.2 |
| KCB-200 2CY-8/3.3-2 |
11 / 2 " | 83.3 | 0.33 | 5 | 3 |
| KCB-200 2CY-12/1.3-22 |
2 " | 200 | 0.33 | 5 | 4 |
| KCB-200 2CY-12/3.3-2 |
2 " | 200 | 0.33 | 5 | 4 |
| KCB-200 2CY-12/6-2 |
2 " | 200 | 0.33 | 5 | 5.5 |
| KCB-200 2CY-18/10-2 |
2 " | 200 | 0.33 | 5 | 5.5 |
| KCB-200 2CY-18/3.6-2 |
21 / 2 " | 200 | 0.33 | 5 | 7.5 |
| KCB-300 2CY-18/3.6-2 |
3 " | 300 | 0.33 | 5 | 5.5 |
| KCB-300 2CY-18/6-2 |
3 " | 300 | 0.33 | 5 | 7.5 |
| KCB83.3 2CY-29/3.6-2 |
3 " | 483.3 | 0.33 | 5 | 7.5 |
| KCB83.3 2CY-29/3.6-2 |
3 " | 483.3 | 0.33 | 5 | 11 |
| KCB-633-2 2CY-38/2.8-2 |
4 " | 633 | 0.28 | 5 | 11 |
| KCB-633-2 2CY-38/8-2 |
4 " | 633 | 0.28 | 5 | 22 |
| KCB-960-2 2CY-60/3-2 |
4 " | 960 | 0.3 | 5 | 18.5 |
| KCB-960-2 2CY-60/6-2 |
4 " | 960 | 0.3 | 5 | 30 |
