GDLF vertical stainless steel multi-stage pump

Product Overview
CDL stainless steel multi-stage stampingCentrifugal pumpThe series is a cold drawn auto industry factory set and convex extrusion welding technology process as one of the three-dimensional pump, a pump using advanced technology made from Denmark, the series of hydraulic model of advanced, energy efficient. Pump with stainless steel internal leaf stamping, smooth flow, avoiding secondary pollution. seal with wear-resistant mechanical seal, no leakage. Motor Lead by Y2 shell, imported bearings, insulation class F class. the overall strength and parts interchangeability.

Features
All series are divided into 8 sizes,. CDLF vertical multistage stainless steel centrifugal pump is the pump running smoothly. Low noise, reliable machine quality, nice appearance, small size, light weight, run the easy installation, is an ideal green and environmental protection, energy savingPump. Flow 2-80m3 / h, the maximum outlet pressure 2.4Mpa, temperature -20 ℃ ~ 150 ℃

Usage
Apply to hot and cold clean, non-flammable, non-liquid solid particles or fibers, such as medicine, food, beverages, boiler feed water, environmental water treatment, pressurized water of life, industrial circulation systems and processing systems, media delivery .

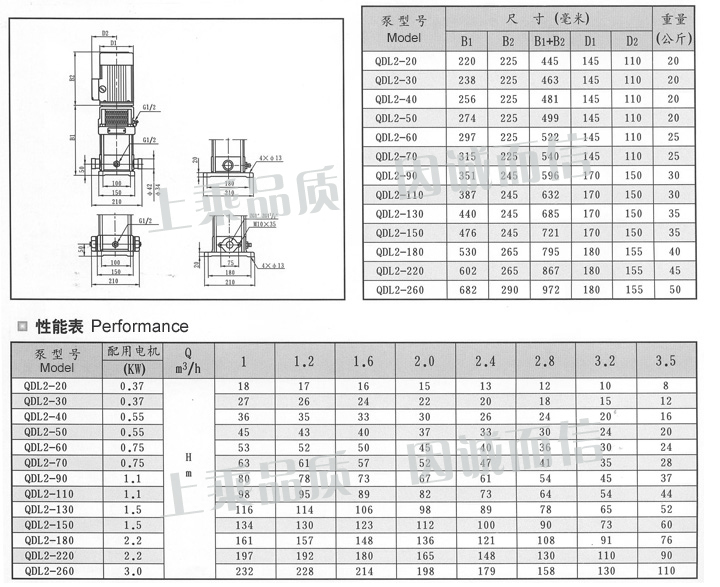

installation size

Performance Parameters

Model	Flow		Head (M)	Efficiency (%)	Speed (R / min)	Power (KW)	NPSH (NPSH) r	Height (Mm)	Weight (Kg)
Model	m3/ H	L / S	Head (M)	Efficiency (%)	Speed (R / min)	Power (KW)	NPSH (NPSH) r	Height (Mm)	Weight (Kg)
25QDLF2-20	2	0.56	15	46	2900	0.37	1.8	486	20
25QDLF2-30	2	0.56	22	46	2900	0.37	1.8	504	22.8
25QDLF2-40	2	0.56	30	46	2900	0.55	1.8	522	23.6
25QDLF2-50	2	0.56	37	46	2900	0.55	1.8	540	20
25QDLF2-60	2	0.56	45	46	2900	0.75	1.8	558	20
25QDLF2-70	2	0.56	52	46	2900	0.75	1.8	576	25
25QDLF2-80	2	0.56	60	46	2900	1.1	1.8	594	25
25QDLF2-90	2	0.56	67	46	2900	1.1	1.8	612	25
25QDLF2-100	2	0.56	75	46	2900	1.1	1.8	630	30
25QDLF2-110	2	0.56	82	46	2900	1.1	1.8	648	30
25QDLF2-120	2	0.56	90	46	2900	1.5	1.8	721	30
25QDLF2-130	2	0.56	97	46	2900	1.5	1.8	739	35
25QDLF2-140	2	0.56	105	46	2900	1.5	1.8	757	35
25QDLF2-150	2	0.56	112	46	2900	1.5	1.8	775	35
25QDLF2-160	2	0.56	120	46	2900	1.5	1.8	793	35
25QDLF2-170	2	0.56	127	46	2900	1.5	1.8	811	40
25QDLF2-180	2	0.56	135	46	2900	2.2	1.8	829	40
25QDLF2-190	2	0.56	142	46	2900	2.2	1.8	847	40
25QDLF2-200	2	0.56	150	46	2900	2.2	1.8	865	40
25QDLF2-210	2	0.56	157	46	2900	2.2	1.8	883	40
25QDLF2-220	2	0.56	165	46	2900	2.2	1.8	901	45
25QDLF2-230	2	0.56	172	46	2900	3	1.8	989	45
25QDLF2-240	2	0.56	180	46	2900	3	1.8	1007	45
25QDLF2-250	2	0.56	187	46	2900	3	1.8	1025	50
25QDLF2-260	2	0.56	195	46	2900	3	1.8	1043	50
32QDLF4-20	4	1.11	16	59	2900	0.37	1.8	501	20
32QDLF4-30	4	1.11	24	59	2900	0.55	1.8	528	20
32QDLF4-40	4	1.11	32	59	2900	0.75	1.8	555	20
32QDLF4-50	4	1.11	40	59	2900	1.1	1.8	582	20
32QDLF4-60	4	1.11	48	59	2900	1.1	1.8	609	20
32QDLF4-70	4	1.11	56	59	2900	1.5	1.8	691	25
32QDLF4-80	4	1.11	64	59	2900	1.5	1.8	718	25
32QDLF4-90	4	1.11	72	59	2900	2.2	1.8	745	30
32QDLF4-100	4	1.11	80	59	2900	2.2	1.8	772	30
32QDLF4-110	4	1.11	88	59	2900	2.2	1.8	799	30
32QDLF4-120	4	1.11	96	59	2900	2.2	1.8	826	30
32QDLF4-130	4	1.11	104	59	2900	3	1.8	923	35
32QDLF4-140	4	1.11	112	59	2900	3	1.8	950	35
32QDLF4-150	4	1.11	120	59	2900	3	1.8	977	46.5
32QDLF4-160	4	1.11	128	59	2900	3	1.8	1004	35
32QDLF4-170	4	1.11	136	59	2900	4	1.8	1066	40
32QDLF4-180	4	1.11	144	59	2900	4	1.8	1093	40
32QDLF4-190	4	1.11	152	59	2900	4	1.8	1120	40
32QDLF4-200	4	1.11	160	59	2900	4	1.8	1147	40
32QDLF4-210	4	1.11	168	59	2900	4	1.8	1174	45
32QDLF4-220	4	1.11	176	59	2900	4	1.8	1201	45
40QDLF8-20	8	2.22	18	64	2900	0.75	2.3	595	25
40QDLF8-30	8	2.22	27	64	2900	1.1	2.3	625	30
40QDLF8-40	8	2.22	36	64	2900	1.5	2.3	710	30
40QDLF8-50	8	2.22	45	64	2900	2.2	2.3	740	40
40QDLF8-60	8	2.22	54	64	2900	2.2	2.3	770	40
40QDLF8-70	8	2.22	63	64	2900	3	2.3	870	45
40QDLF8-80	8	2.22	72	64	2900	3	2.3	900	45
40QDLF8-90	8	2.22	81	64	2900	4	2.3	965	55
40QDLF8-100	8	2.22	90	64	2900	4	2.3	995	55
40QDLF8-110	8	2.22	99	64	2900	4	2.3	1025	55
40QDLF8-120	8	2.22	108	64	2900	4	2.3	1055	55
40QDLF8-130	8	2.22	117	64	2900	5.5	2.3	1125	80
40QDLF8-140	8	2.22	126	64	2900	5.5	2.3	1155	80
40QDLF8-150	8	2.22	135	64	2900	5.5	2.3	1185	80
40QDLF8-160	8	2.22	144	64	2900	5.5	2.3	1215	80
40QDLF8-170	8	2.22	153	64	2900	7.5	2.3	1245	86
40QDLF8-180	8	2.22	162	64	2900	7.5	2.3	1275	90
40QDLF8-190	8	2.22	171	64	2900	7.5	2.3	1305	90
40QDLF8-200	8	2.22	180	64	2900	7.5	2.3	1335	95
50QDLF16-20	16	4.44	22	71	2900	2.2	4.2	680	40
50QDLF16-30	16	4.44	34	71	2900	3	4.2	795	50
50QDLF16-40	16	4.44	46	71	2900	4	4.2	875	55
50QDLF16-50	16	4.44	58	71	2900	5.5	4.2	960	70
50QDLF16-60	16	4.44	70	71	2900	5.5	4.2	1005	75
50QDLF16-70	16	4.44	82	71	2900	7.5	4.2	1050	80
50QDLF16-80	16	4.44	94	71	2900	7.5	4.2	1095	80
50QDLF16-90	16	4.44	106	71	2900	11	4.2	1290	140
50QDLF16-100	16	4.44	118	71	2900	11	4.2	1335	140
50QDLF16-110	16	4.44	130	71	2900	11	4.2	1380	145
50QDLF16-120	16	4.44	142	71	2900	11	4.2	1425	145
50QDLF16-130	16	4.44	154	71	2900	15	4.2	1470	165
50QDLF16-140	16	4.44	166	71	2900	15	4.2	1515	165
