YW liquid without plug-efficient sewage pump

Product characteristics :
 1. Um Road hydraulic components used anti-plug design, greatly enhanced through the dirt, pump effectively through five times the diameter fiber material and pump bore diameter of about 50% of the solid particles.
 2. Design, matching motors, high efficiency, energy-saving effect is remarkable.
 3. Series sealed a double mechanical seal, made of tungsten carbide hard wear with durability and wear characteristics. Security can pump 8,000 hours of continuous operation.
 4. Pump compact structure, small size, mobile convenience features such as simple installation. 5. Users may need to be equipped with Level Control counters, according to the required Level changes Start and stop the pump control, and no person in custody is extremely convenient to use.
 6. Vertical structures for the pump to work, and therefore it was very easy Pump Baptist in liquid starter. find time to exhaust problem does not exist, with no leakage characteristics of liquid depth of 0.5-7 meters.
 7. Spindle structure of a modern, reliable, pump and motor Coupling, shaft development dimension precision, ensure the smooth operation of the pump, with sufficient safety factor.
 8. Guarantee the use of lift motor but contained within.
 9. Double tube with a single-pump installation and the installation of two types of cases are supporting the installation disk and disk side.

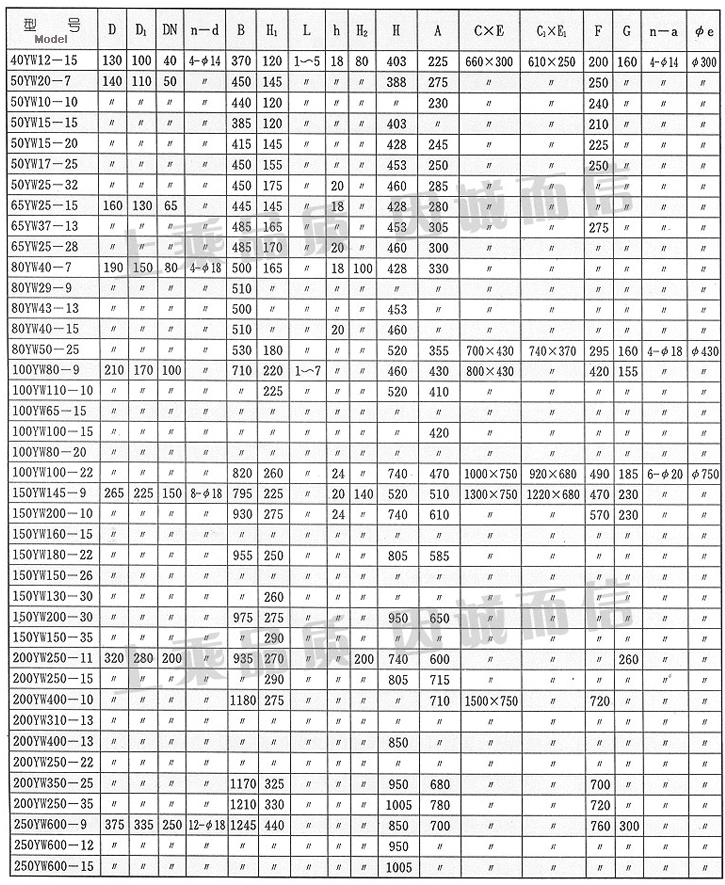

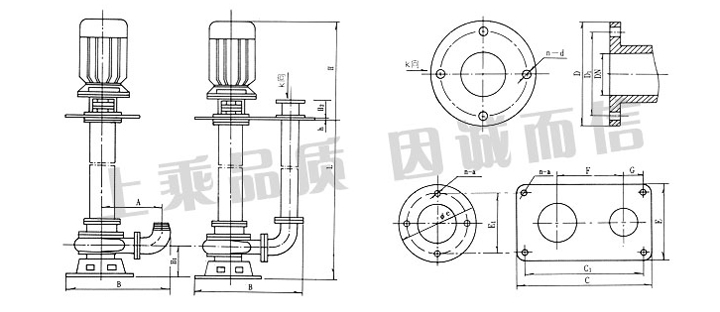

installation size

installation size and dimension

Performance Parameters

Type Emit caliber
mm
Flow
m3/h
Lift
m
Speed
r/min
Power
KW

Efficiency
%
40YW12-15 40 12 15 2900 1.5 48
50YW20-7 50 20 7 1450 0.75 62
50YW10-10 10 10 0.75 54
50YW15-15 15 15 2900 1.5 51
50YW15-20 15 20 2.2 51
50YW17-25 17 25 3 53
50YW25-32 25 32 5.5 49
65YW25-15 65 25 15 2.2 52
65YW37-13 37 13 3 60
65YW25-28 25 28 4 58
80YW40-7 80 40 7 2.2 50
80YW29-9 29 9 2.2 48
80YW43-13 43 13 3 65
80YW40-15 40 15 4 57
80YW50-25 50 25 7.5 56
100YW80-9 100 80 9 1450 4 62
100YW110-10 110 10 5.5 97
100YW65-15 65 15 5.5 59
100YW100-15 100 15 7.5 70
100YW80-20 80 20 7.5 71
100YW100-22 100 22 15 61
150YW145-9 150 145 9 7.5 63
150YW200-10 200 10 15 64
150YW160-15 160 15 15 67
150YW180-22 180 22 18.5 74
150YW150-26 150 26 18.5 72
150YW130-30 130 30 22 69
150YW200-30 200 30 37 65
150YW150-35 150 35 37 63
200YW250-11 200 250 11 15 72
200YW250-15 250 15 18.5 72
200YW400-10 400 10 22 75
200YW310-13 310 13 22 71
200YW400-13 400 13 30 76
200YW250-22 250 22 30 71
200YW350-25 350 25 37 73
200YW250-35 35 45 69
250YW600-9 250 600 9 30 78
250YW600-12 600 12 37 76
250YW600-15 600 15 45 73
