Magnetic pipeline pump
Product Overview
Magnetic forcePipeline PumpIn 10 years this company design and manufacture of horizontalMagnetic PumpBased on the experience of the development of a new pipeline pumps, both with the ISG-typePipe centrifugal pumpsCharacteristics, but also has MagneticChemical PumpAdvantage of the latest generation of non-leakage pipelineCentrifugal pump.
Features
1, leak-free operation, can transport flammable, explosive, toxic and corrosive medium;
2, material quality, pump body, impeller, isolated set of components such as filters are high quality stainless steel;
3, bushings for high wear resistance of silicon carbide, tungsten carbide, carbon bearing rock M106K, and set the oil tank, effectively ensure the pump's service life;
4, vertical installation, compact structure, small size;
5, little vibration, low noise, particularly stable;
6, pump most parts interchangeable with the CQB Series Magnetic Pump, pump performance and CQB series of the same; flow rate of 3.2-100m3 / h; head for the 20-80m; power for the 0.75-75Kw

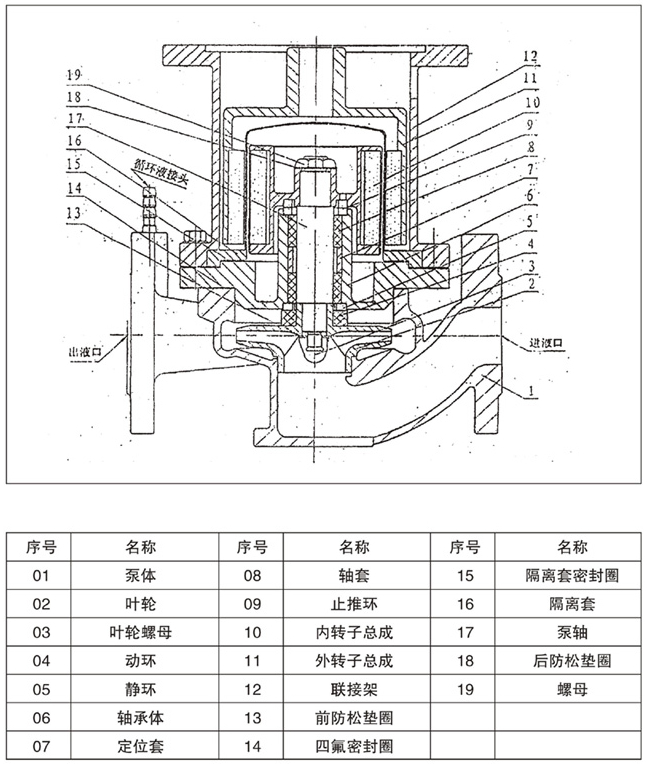

installation size
Performance Parameters
| Model | Diameter (mm) | Flow (M3/ H) |
Head (M) |
Motor Power (KW) |
Voltage (V) |
Material | |
| Import | Export | ||||||
| CQG32-125L | 32 | 20 | 3.2 | 20 | 1.1 | 380 | Not Rust Steel |
| CQG32-160L | 32 | 20 | 3.2 | 32 | 1.5 | 380 | |
| CQG40-105L | 40 | 25 | 3.2 |
12.5 |
1.1 | 380 | |
| CQG40-125L | 40 | 25 | 6.3 | 20 | 2.2 | 380 | |
| CQG40-160L | 40 | 25 | 6.3 | 32 | 3 | 380 | |
| CQG40-200L | 40 | 25 | 6.3 | 50 | 5.5 | 380 | |
| CQG50-85L | 50 | 32 | 6.3 | 8 | 1.1 | 380 | |
| CQG50-105L | 50 | 32 | 6.3 | 12.5 | 1.5 | 380 | |
| CQG50-125L | 50 | 32 | 12.5 | 20 | 3 | 380 | |
| CQG50-160L | 50 | 32 | 12.5 | 32 | 4 | 380 | |
| CQG50-200L | 50 | 32 | 12.5 | 50 | 7.5 | 380 | |
| CQG50-250L | 50 | 32 | 12.5 | 80 | 18.5 | 380 | |
| CQG65-125L | 65 | 50 | 25 | 20 | 4 | 380 | |
| CQG65-160L | 65 | 50 | 25 | 32 | 7.5 | 380 | |
| CQG65-200L | 65 | 40 | 25 | 50 | 15 | 380 | |
| CQG65-250L | 65 | 40 | 25 | 80 | 22 | 380 | |
| CQG80-125L | 80 | 65 | 50 | 20 | 7.5 | 380 | |
| CQG80-160L | 80 | 65 | 50 | 32 | 15 | 380 | |
| CQG80-200L | 80 | 50 | 50 | 50 | 22 | 380 | |
| CQG80-250L | 80 | 50 | 50 | 80 | 37 | 380 | |
| CQG100-125L | 100 | 80 | 100 | 20 | 15 | 380 | |
| CQG100-160L | 100 | 80 | 100 | 32 | 22 | 380 | |
| CQG100-200L | 100 | 65 | 100 | 50 | 37 | 380 | |
| CQG100-250L | 100 | 65 | 100 | 80 | 55 | 380 | |
| Note: Each model can be equipped with explosion-proof motor | |||||||
